Zebra ZP Series Printer, Windows Installation & Setup Guide

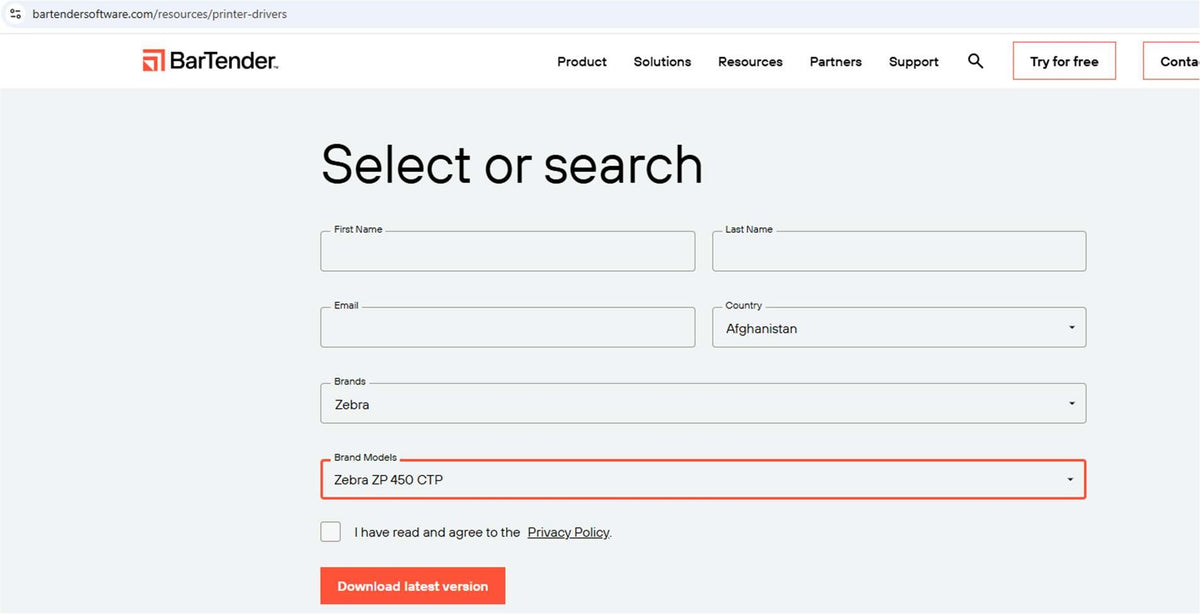

• Open a web browser and go to bartendersoftware.com/resources/printer-drivers.
• Under Brands select Zebra, then choose your exact model under Brand Models (ZP 450 CTP, ZP 500 CTP, or ZP 505 CTP).
• Agree to the privacy policy and click Download latest version to save the driver package before starting the installation.

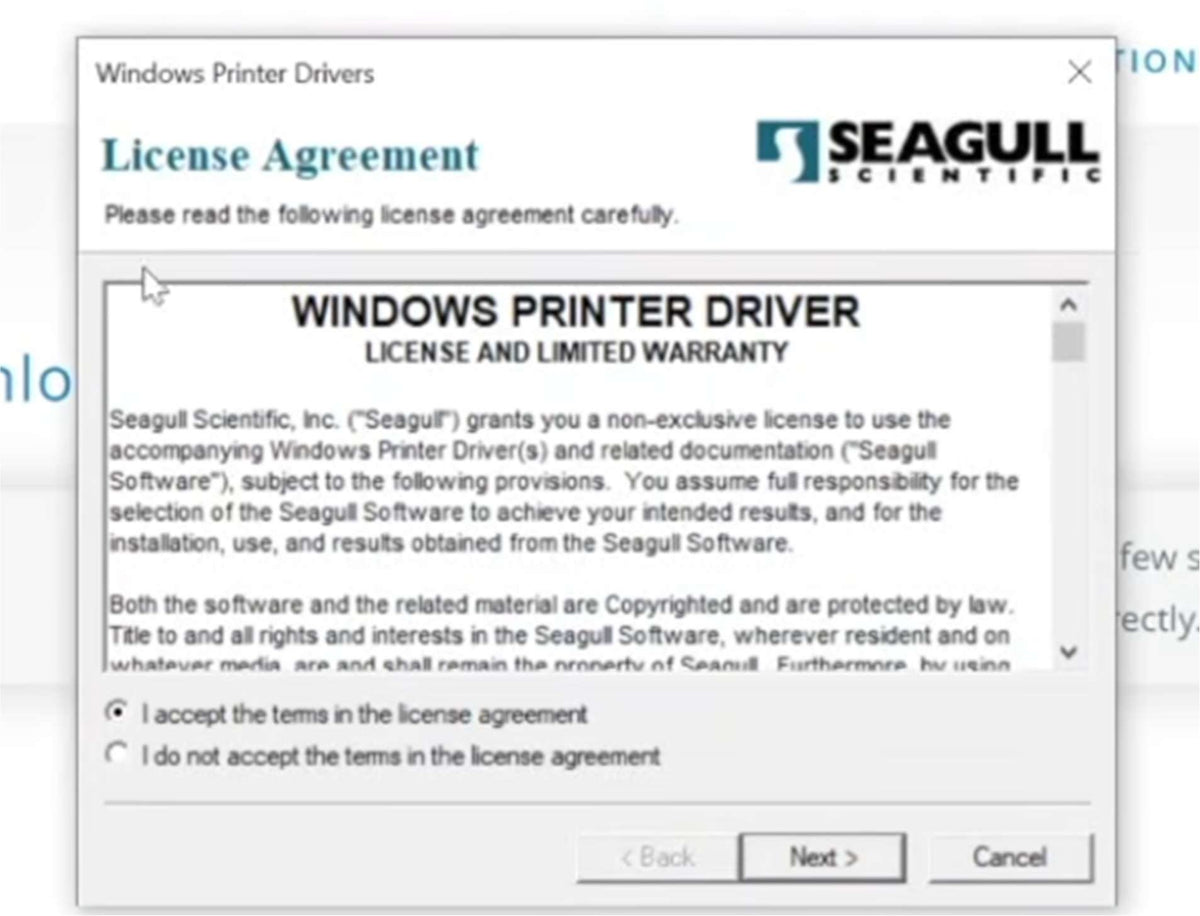

Run the downloaded driver package. On the License Agreement screen, read the terms, select I accept the terms in the license agreement, and click Next.

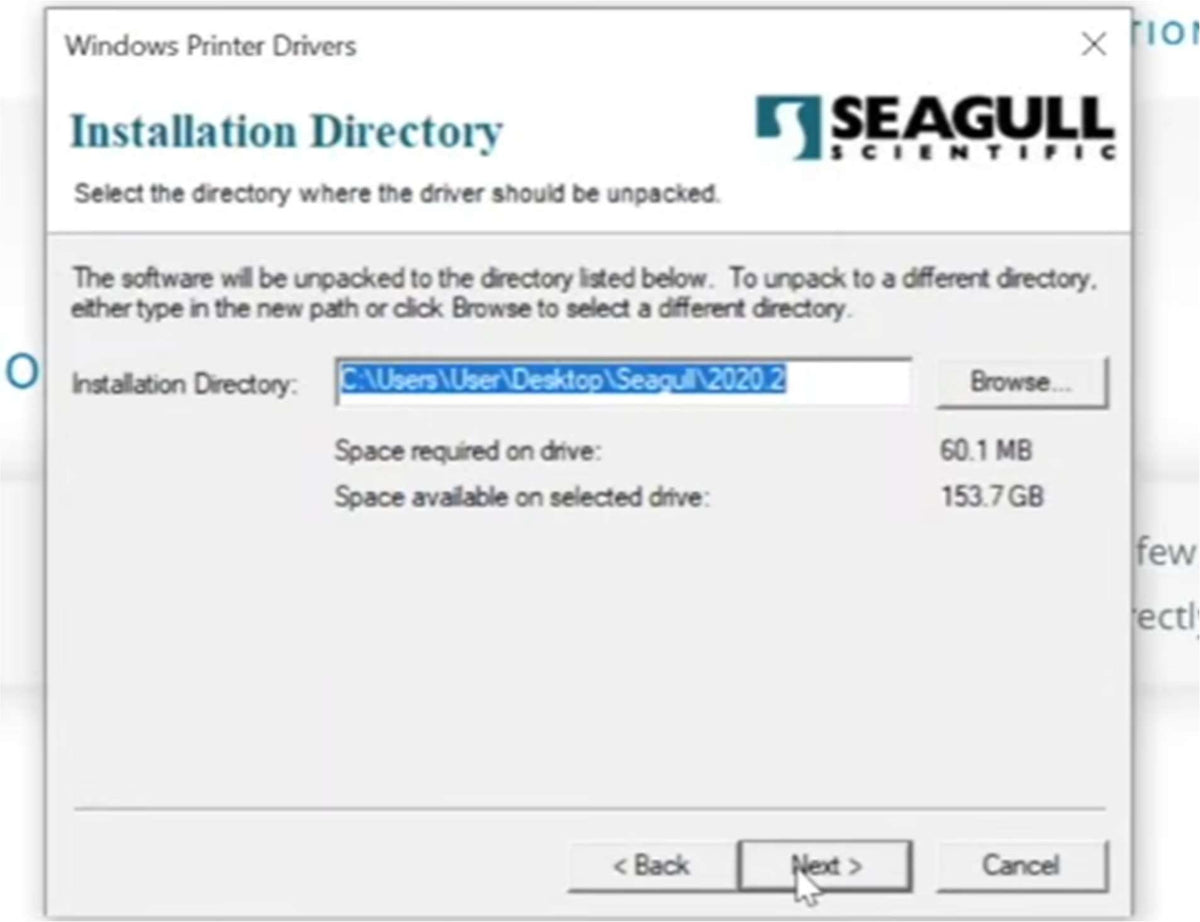

Review the folder where the driver files will be unpacked. Unless your organization requires a different location, keep the default path and click Next.

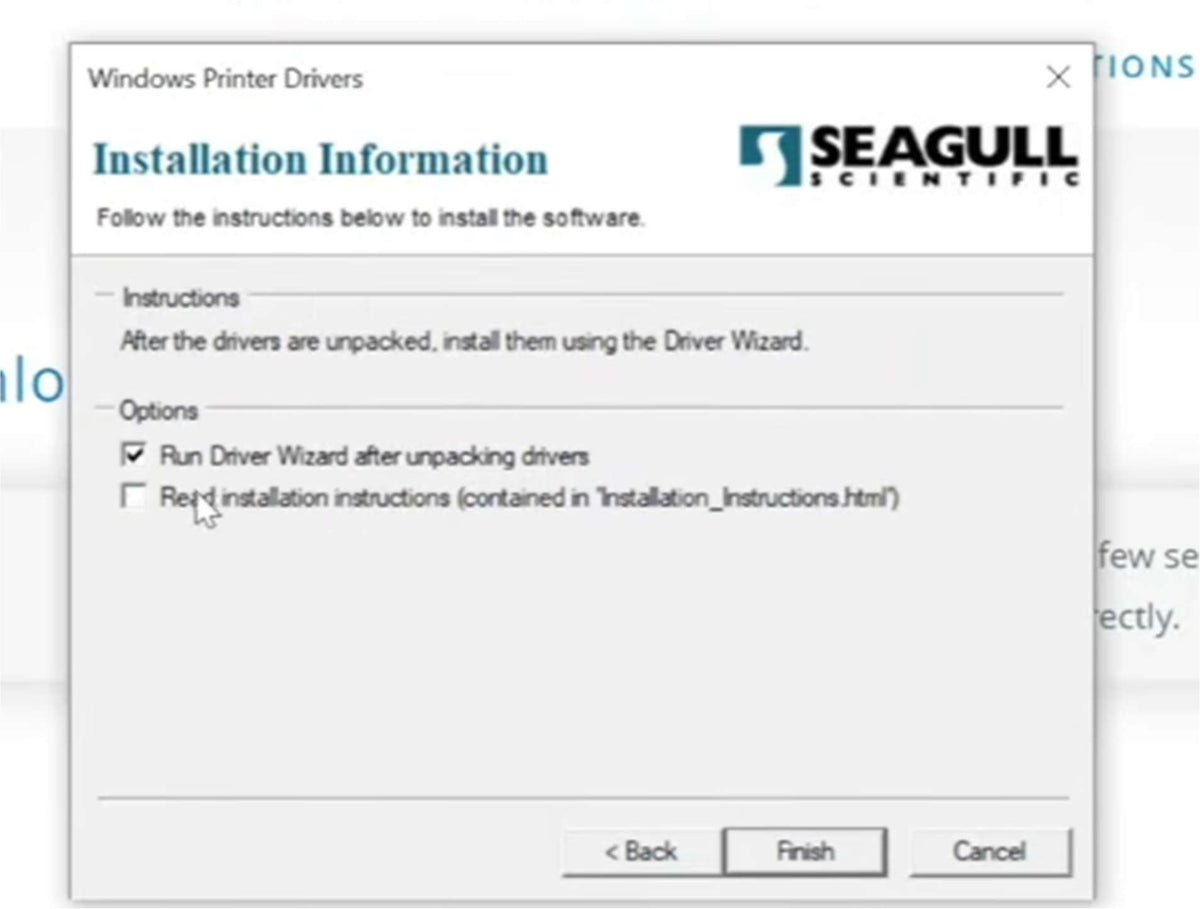

On the Installation Information screen, leave Run Driver Wizard after unpacking drivers checked and click Finish to complete this stage of the setup.

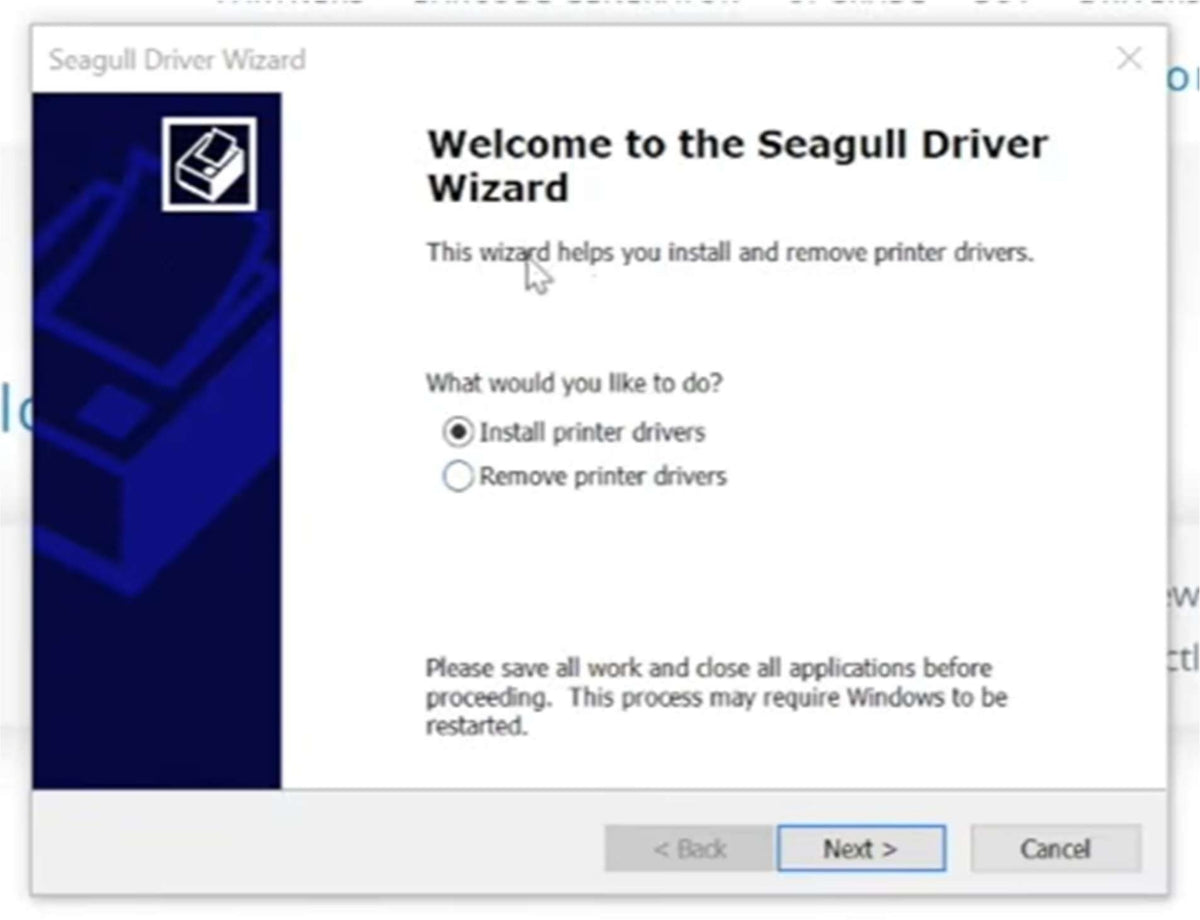

The driver installation wizard opens automatically. Choose Install printer drivers and click Next. Save any open work first — Windows may need to restart during this process.

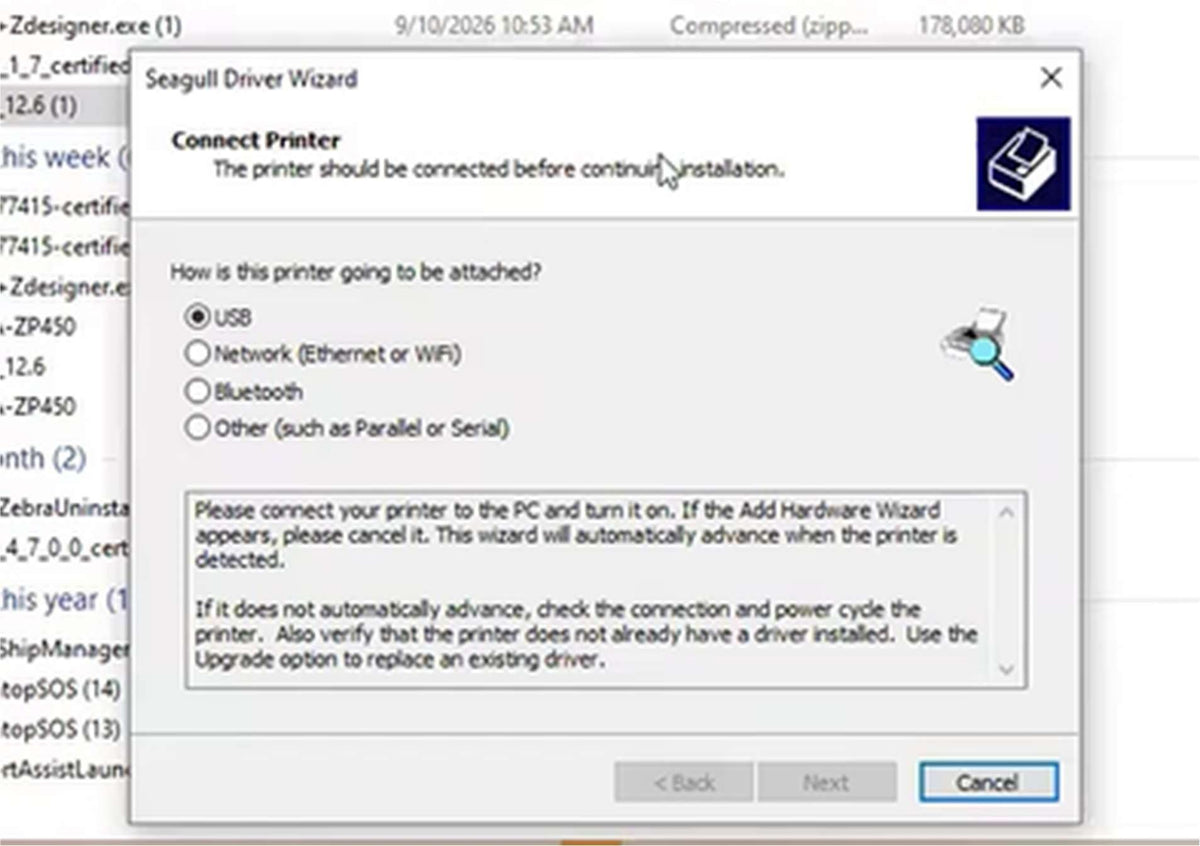

When prompted How is this printer going to be attached?, choose the method that matches your setup. For a USB-connected ZP450/ZP500/ZP505, select USB. Connect the printer to the PC and power it on now if you haven't already, then click Next.

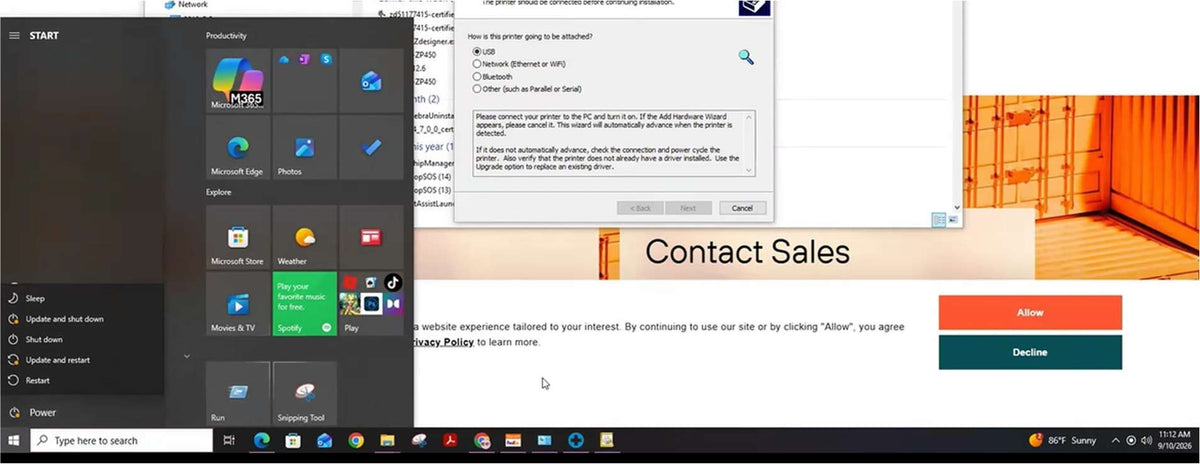

If the wizard does not automatically advance once the printer is connected, first verify the physical USB connection and confirm the printer is powered on. If the connection looks correct but the printer still is not found, the most likely cause is that Windows is not fully up to date or a required driver component is missing. Continue to Step 8 before retrying the wizard.

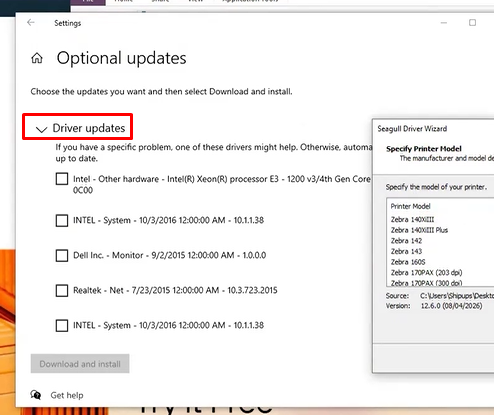

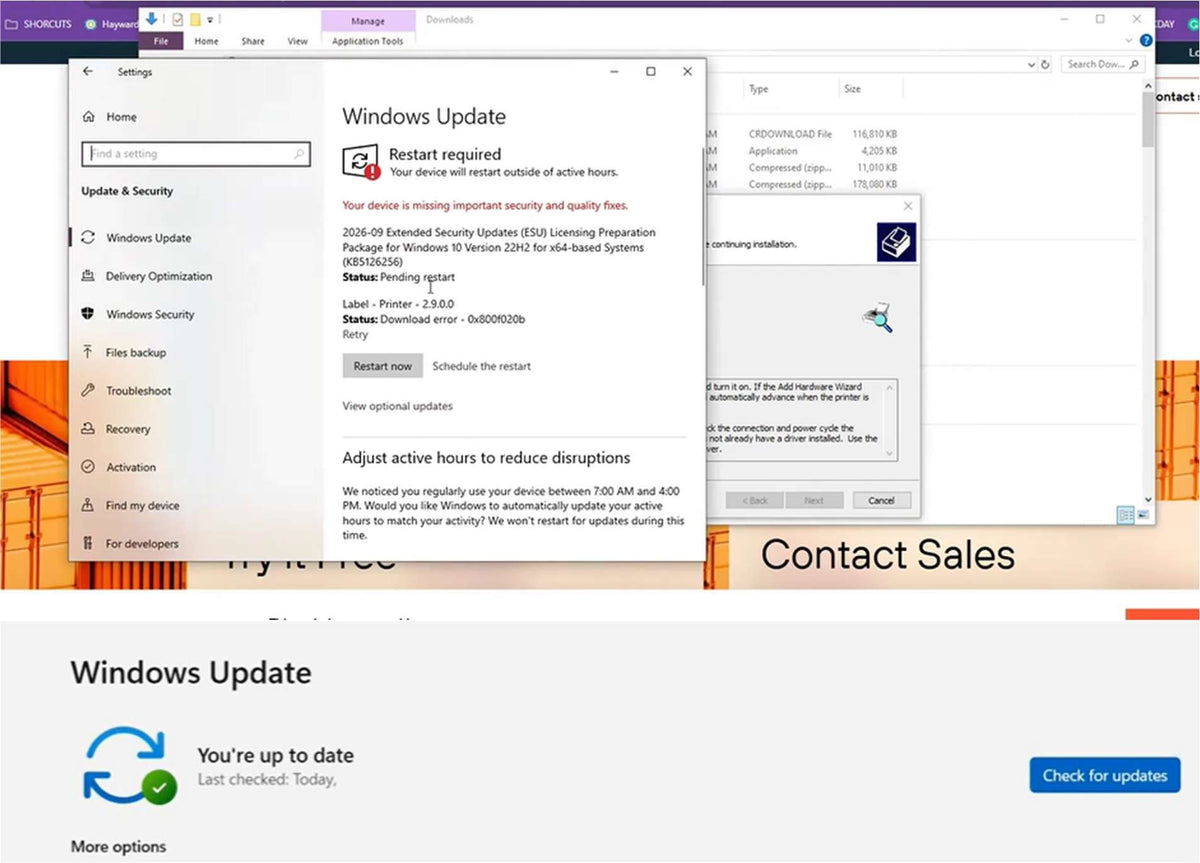

Open Settings → Update & Security → Windows Update and install any pending updates. Also check View optional updates → Driver updates for any listed driver packages and install them. If a restart is requested, save your work and restart the PC. Once Windows reports You're up to date, reconnect the printer and proceed to Step 9.

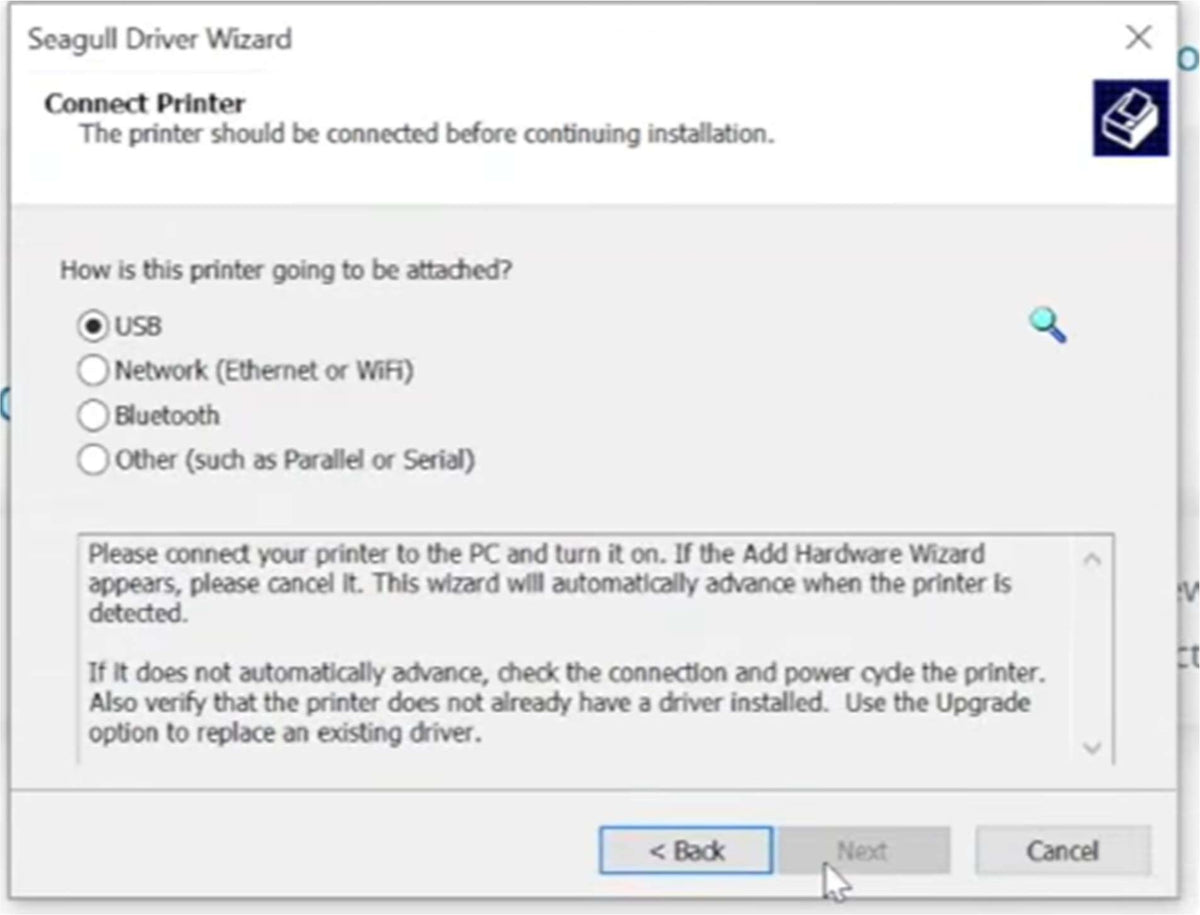

Relaunch the driver installation wizard and select Install printer drivers → Next, then choose the same connection method used in Step 6 (typically USB). With Windows fully updated, the wizard should now detect the printer automatically.

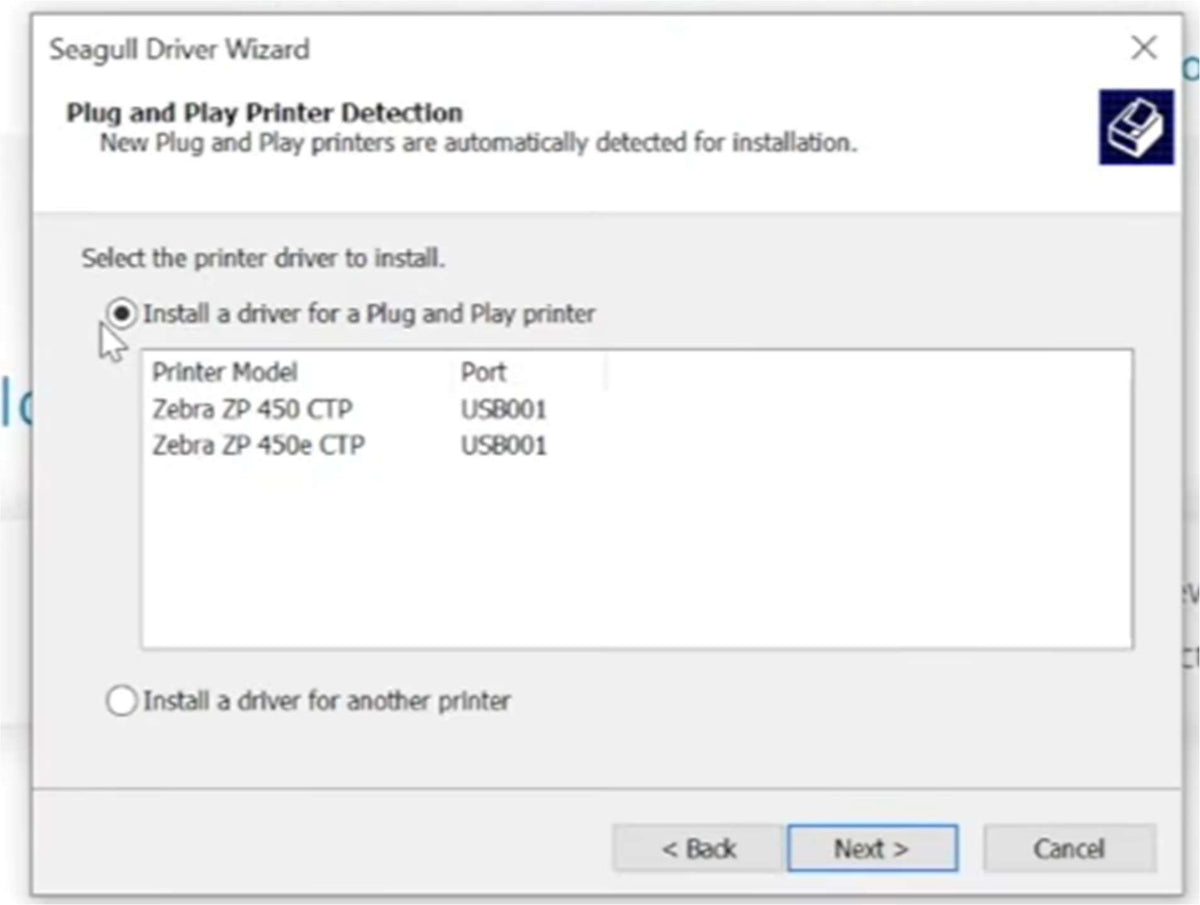

The wizard searches for available Plug and Play printers. When your model appears in the list (for example Zebra ZP 450 CTP or Zebra ZP 500 CTP on port USB001), select it and click Next.

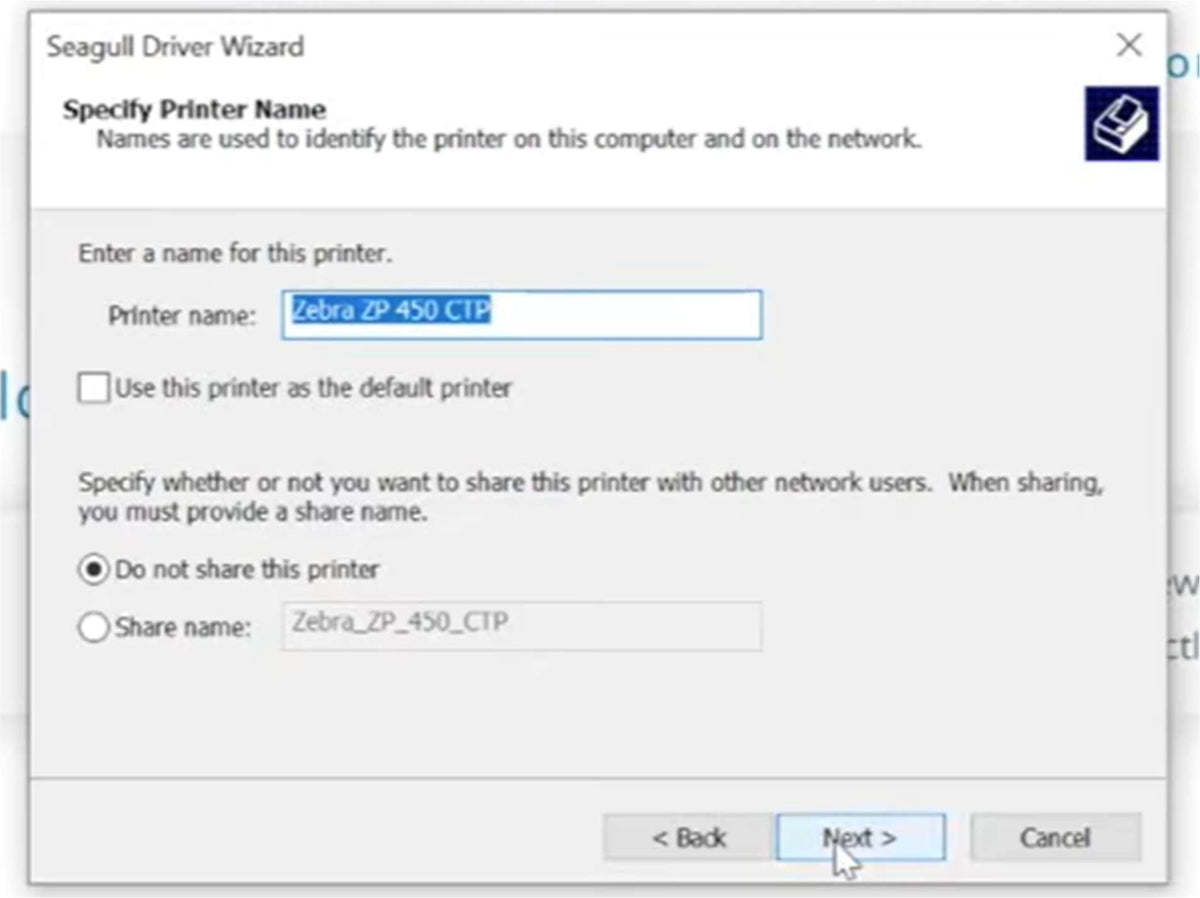

Enter a clear, recognizable name for the printer so users and support staff can identify it easily (the default model name usually works well). Optionally set it as the default printer or share it with other network users, then click Next.

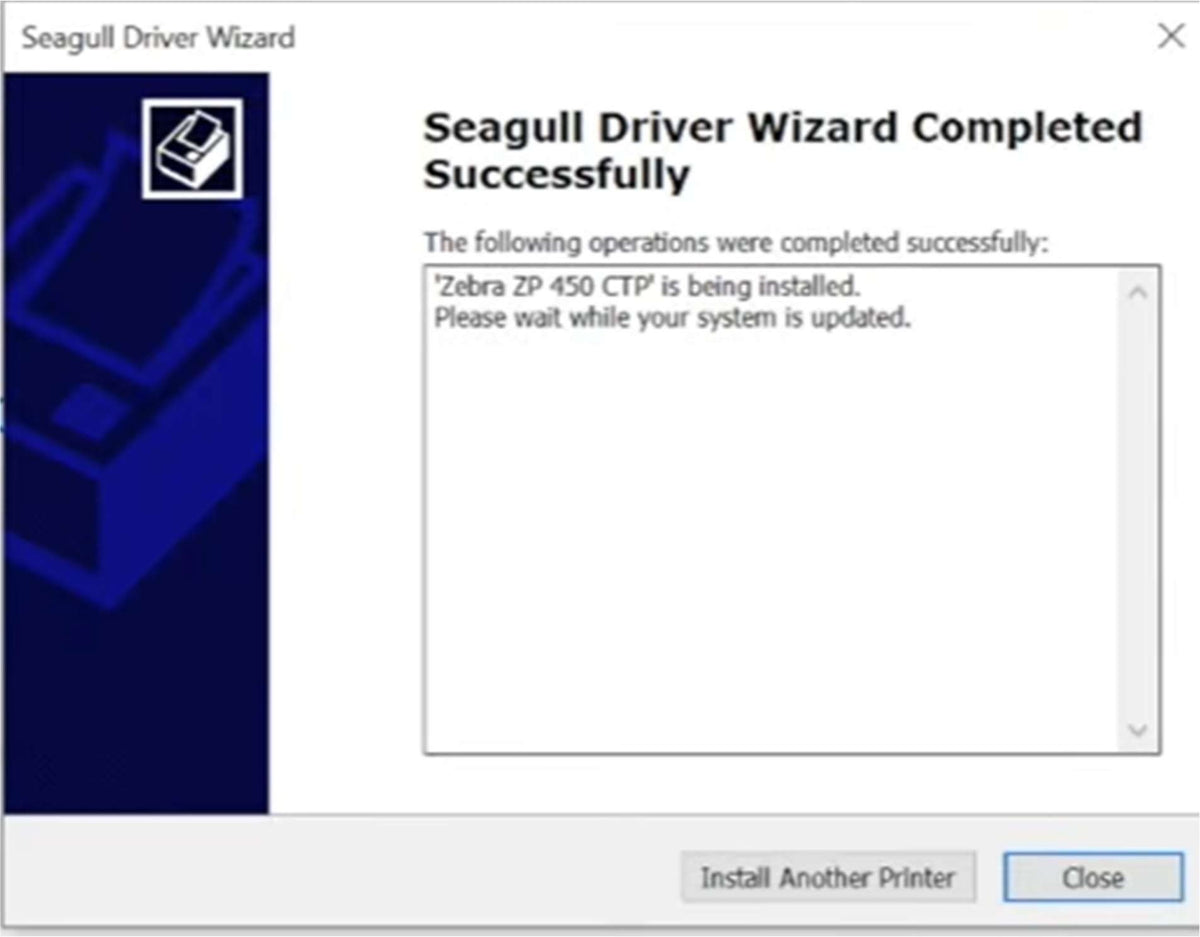

Allow the wizard to finish installing the driver. When the Driver Installation Wizard Completed Successfully screen appears, click Close (or Install Another Printer if you are setting up additional ZP-series units).

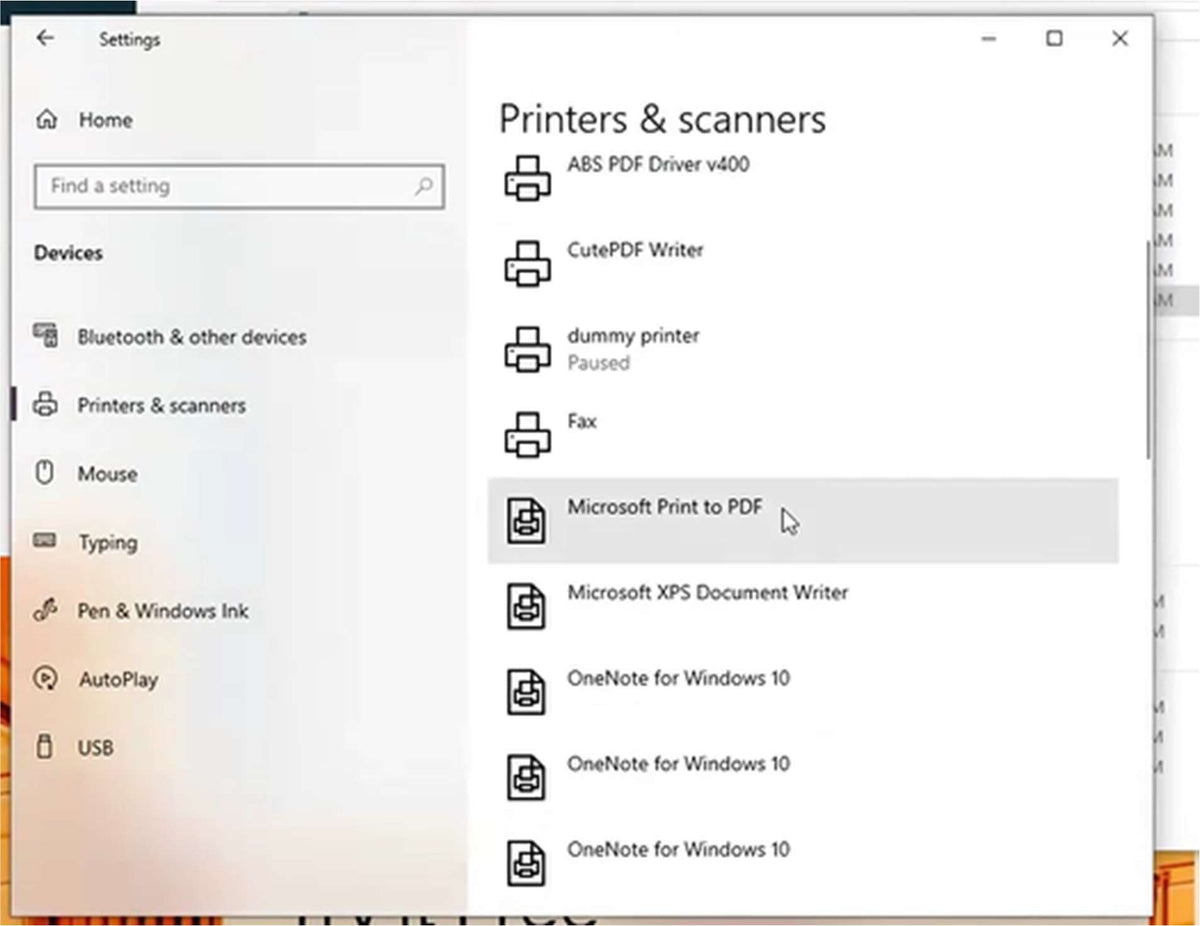

Open Settings → Devices → Printers & scanners and confirm the new printer appears in the list.

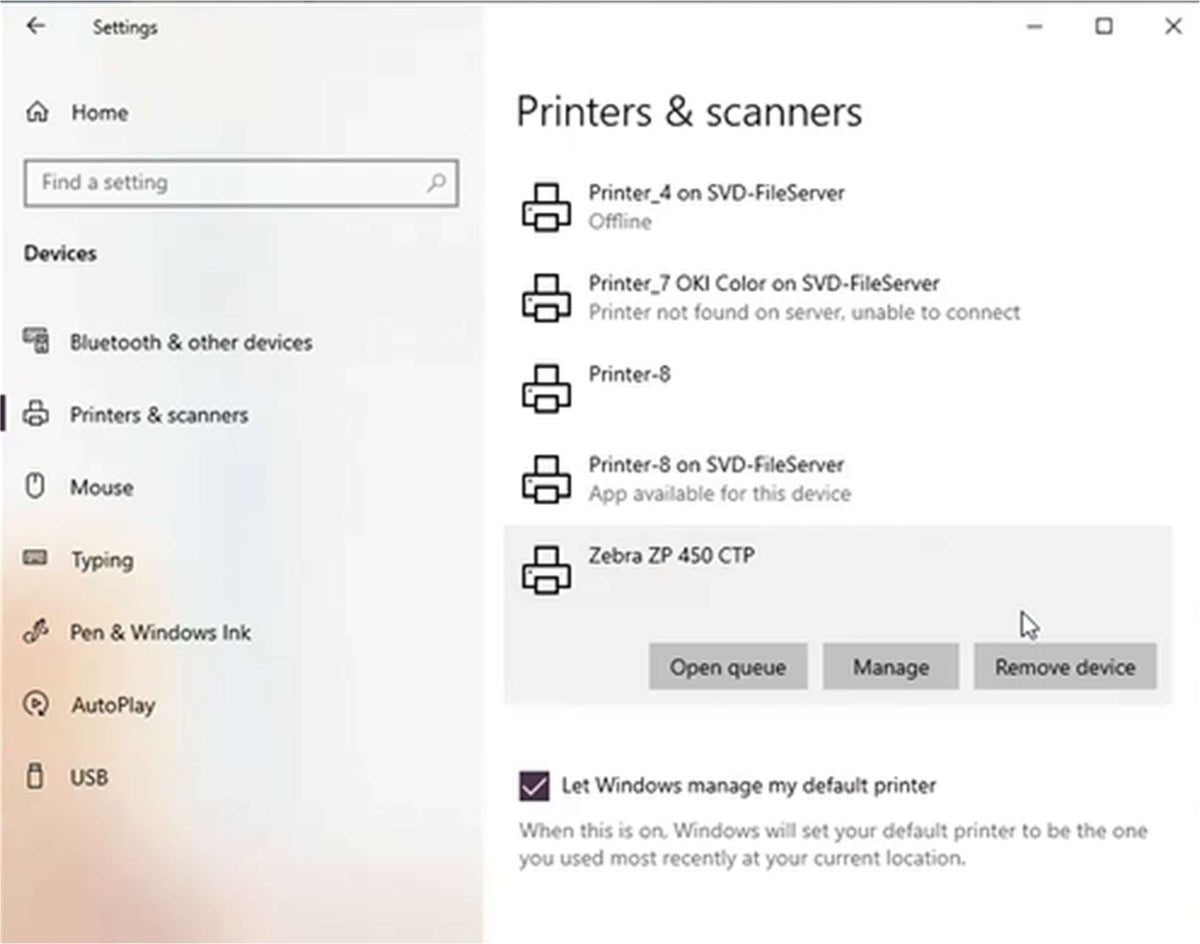

Select the newly installed printer (e.g., Zebra ZP 450 CTP) from the list and click Manage to review its queue and preferences.

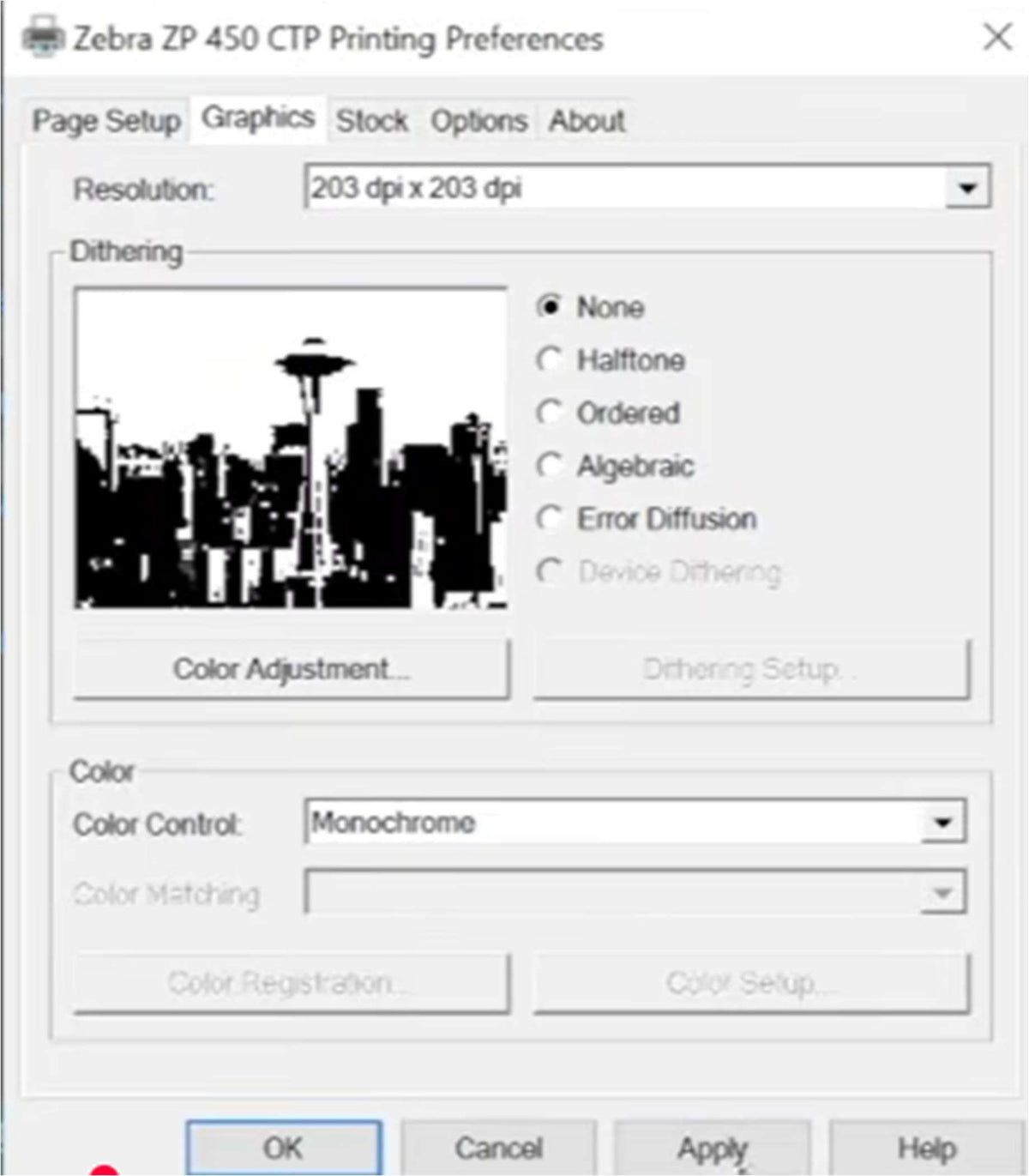

From the Manage screen, open Printing preferences. On the Graphics tab, confirm the resolution matches your printhead (203 dpi is standard for the ZP450/ZP500) and leave Dithering set to None and Color Control to Monochrome unless your label design requires otherwise.

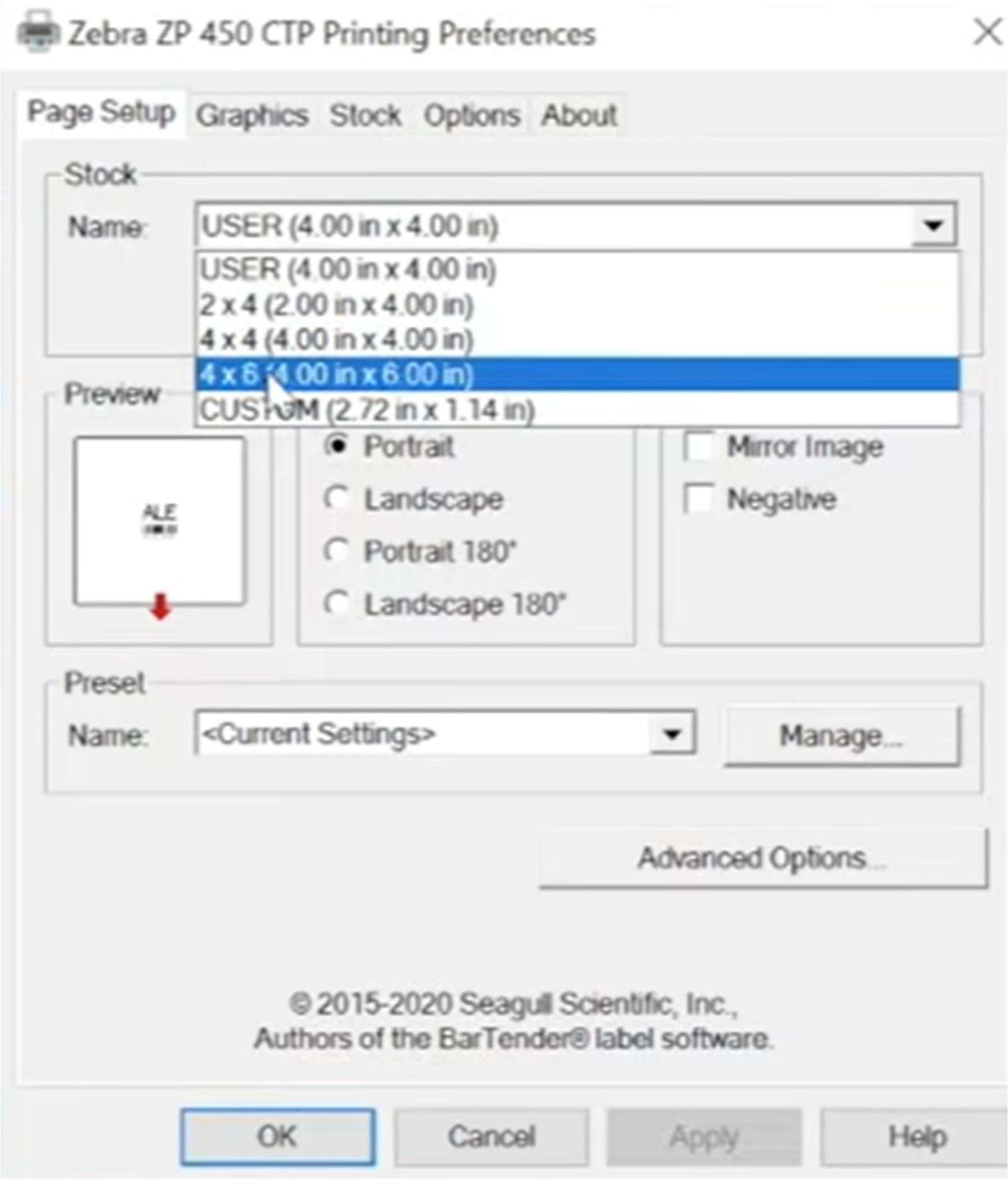

On the Page Setup tab, select the Stock size that matches your physical labels (for example, 4 x 6 (4.00 in x 6.00 in) for standard shipping labels). Selecting the wrong dimensions is the most common cause of misaligned or partial prints.

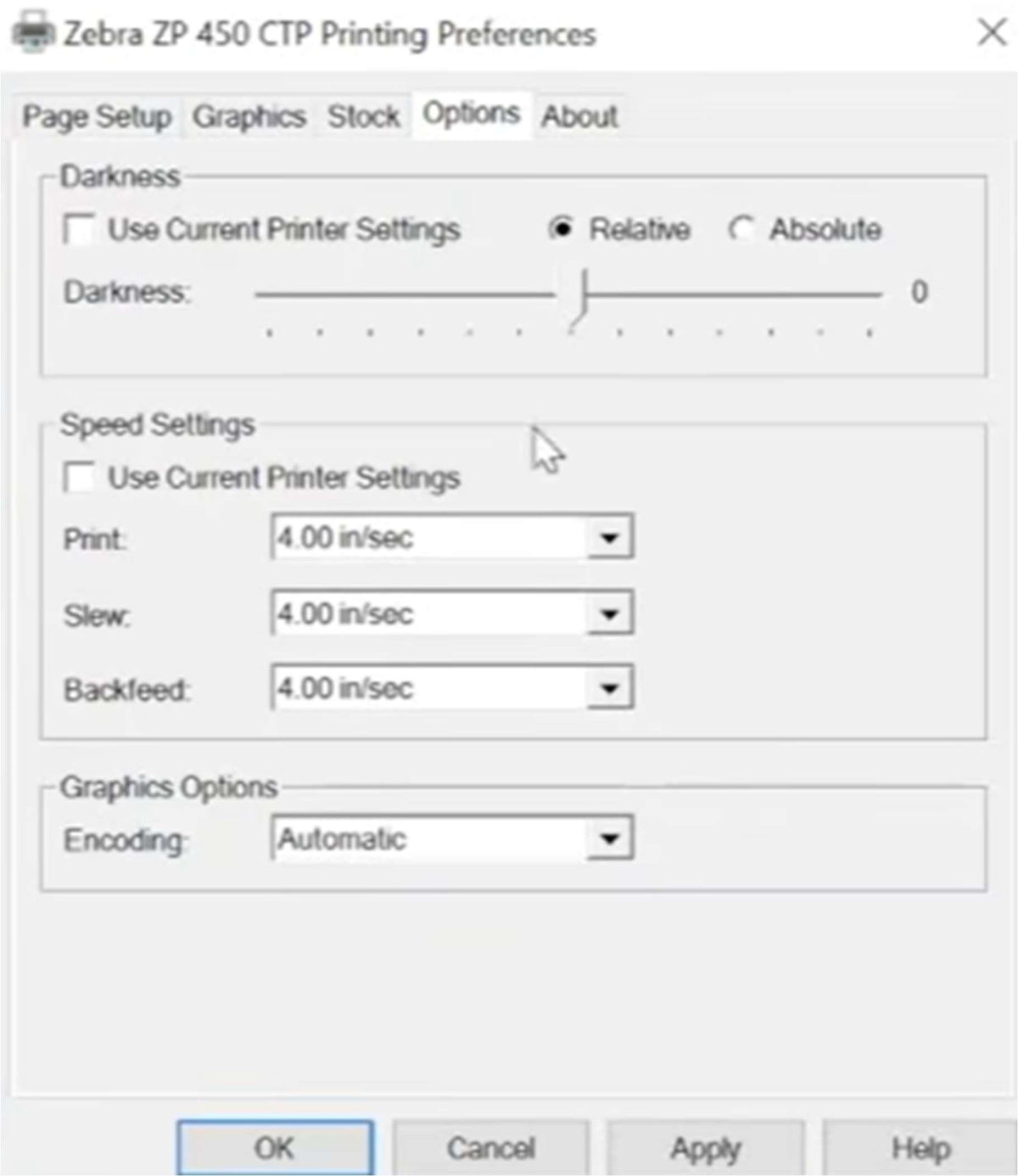

On the Options tab, review the Darkness and Speed Settings (Print, Slew, and Backfeed). Adjust these values to match your label stock and desired print quality — darker settings generally suit thicker or matte stock, while faster speeds suit high-volume printing. Click OK to save.

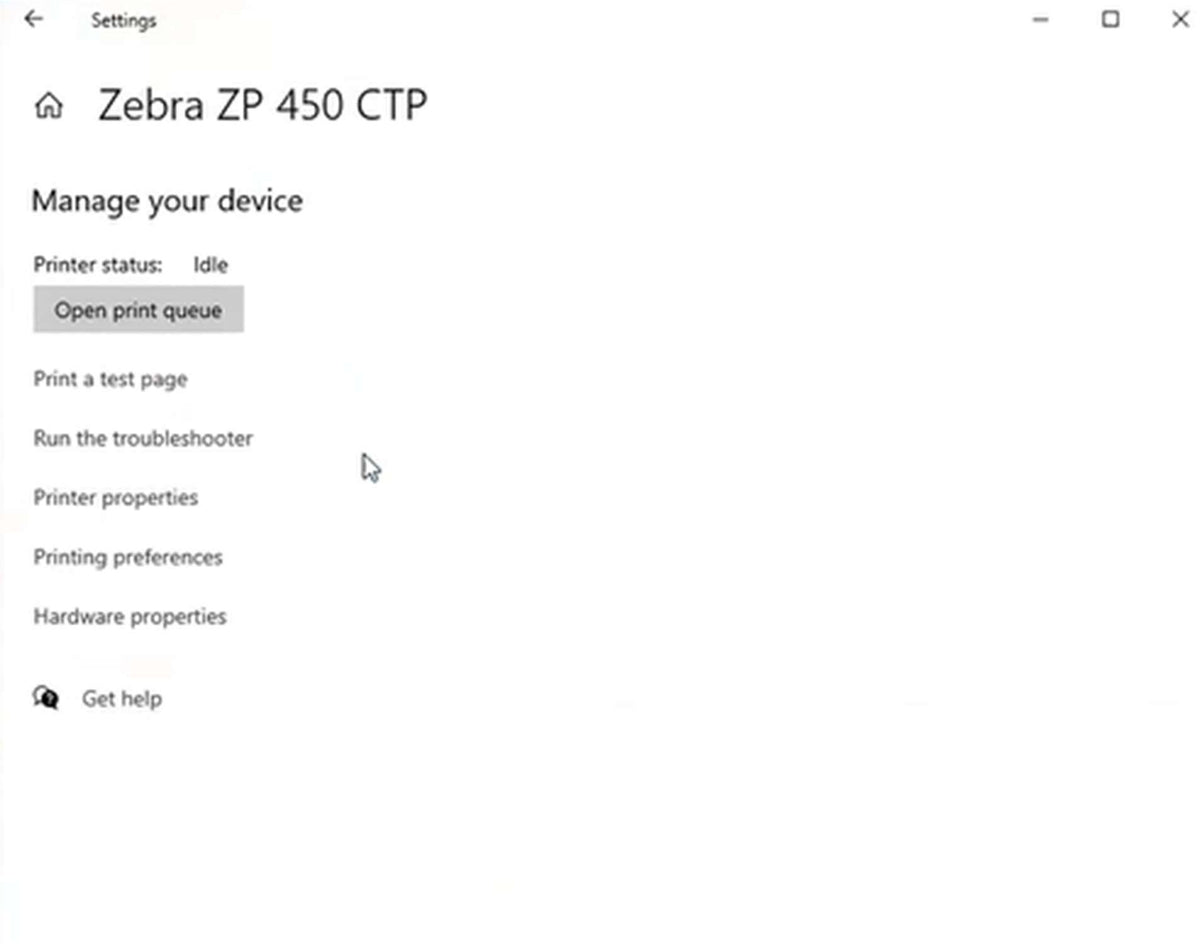

Return to the printer's management screen in Settings and click Print a test page. If the test label prints correctly, the ZP-series printer is fully installed and ready for use.

Final Installation Checklist

Before handing the printer over to the user, verify the following:

• Windows is fully updated.
• The required printer driver is installed.
• The ZP-series printer (ZP450 / ZP500 / ZP505) appears under Printers & scanners.
• The correct printer entry is selected as default (if required).
• Label stock/size in Printing Preferences matches the physical labels loaded.
• Print darkness and speed settings are appropriate for the label stock.
• A Windows test print completes successfully.

Quick Troubleshooting Reference

• Wizard never detects the printer. Verify the USB cable and power connection, power-cycle the printer, and confirm Windows is fully updated (Steps 7–9). If a driver is already installed, use the Upgrade option instead of a fresh install.
• Test page prints blank or faint. Increase the Darkness setting on the Options tab (Step 17) and confirm the correct label stock size is selected (Step 16).
• Labels print offset or cut off. Re-check the Stock/label size on the Page Setup tab (Step 16) against the physical label dimensions loaded in the printer.
• Printer shows as offline in Windows. Reseat the USB cable, confirm the printer is powered on, and set it as the default printer under Printers & scanners (Step 13–14).
