ZP450, ZP500, and ZP505

Zebra ZP Series, Media Calibration Guide

14 steps

Zebra ZP Series Thermal Printer

Technical Support Reference · Zebra ZP Series Desktop Printers

Overview

Calibration teaches the Zebra ZP series printer to correctly detect the length and spacing of the installed label media, using either the gap or black-mark sensor. Calibration should be performed whenever the printer is set up for the first time, or whenever the label stock, liner type, or roll width is changed. Skipping calibration after a media change is one of the most common causes of skipped labels, blank prints, or inaccurate label registration.

Before You Begin

  • Confirm the label roll matches the printer's supported media specifications (width, gap or black-mark type).
  • Ensure the printer is powered off before loading media, unless otherwise noted below.
  • Have a USB connection ready if you plan to calibrate from a Windows PC.
Steps
  1. Method 1: Manual Calibration (On the Printer)
  2. Connect the power cable to the printer, using the port indicated below, and plug it…
  3. Open the printer and insert the label roll, ensuring it is seated correctly against the…
  4. Power on the printer.
  5. If automatic calibration does not run, initiate it manually:
  6. The printer will begin calibration automatically and feed several labels to confirm…
  7. Method 2: Calibration via Windows
  8. Connect the printer to the computer and confirm the Zebra printer driver is installed.
  9. Open Windows Settings.
  10. Go to Bluetooth & devices, then select Printers & scanners.
  11. Select the target printer from the list (for example, Zebra ZP 450), then click Printer…
  12. Open the Tools tab and select Run Calibration.
  13. Wait for the calibration routine to complete, then click OK to confirm.
  14. Sensor Cleaning

Step 1

Method 1: Manual Calibration (On the Printer)

Use this method for a quick calibration directly at the printer, without a computer connection.

Step 2

Connect the power cable to the printer, using the port indicated below, and plug it…

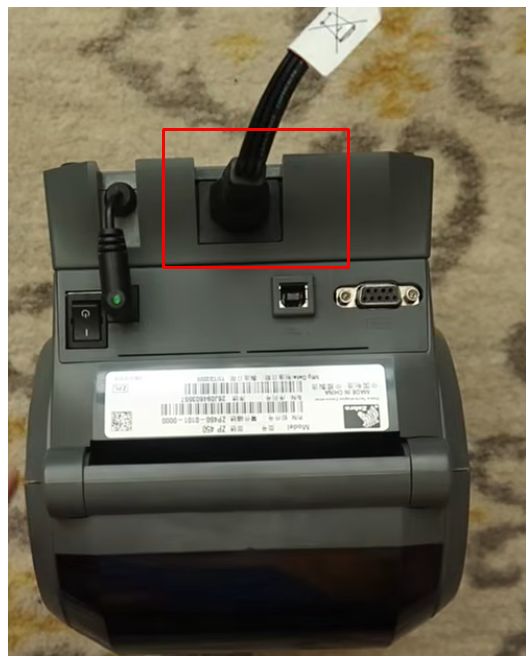

Power connector on the rear of the printer.

Step 3

Open the printer and insert the label roll, ensuring it is seated correctly against the…

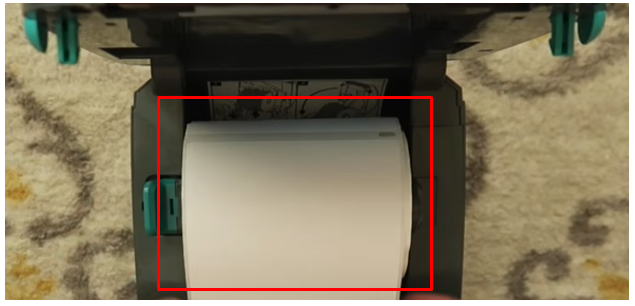

Label roll loaded and seated in the media compartment.

Step 4

Power on the printer.

Power on the printer. In most cases, the printer performs a self-calibration automatically during startup.

Step 5

If automatic calibration does not run, initiate it manually:

press and hold the Feed button until the printer's status light blinks twice, then release.

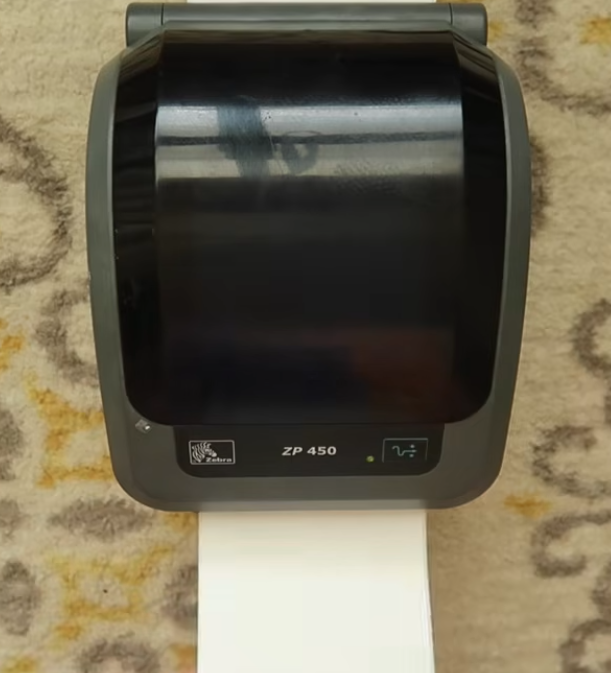

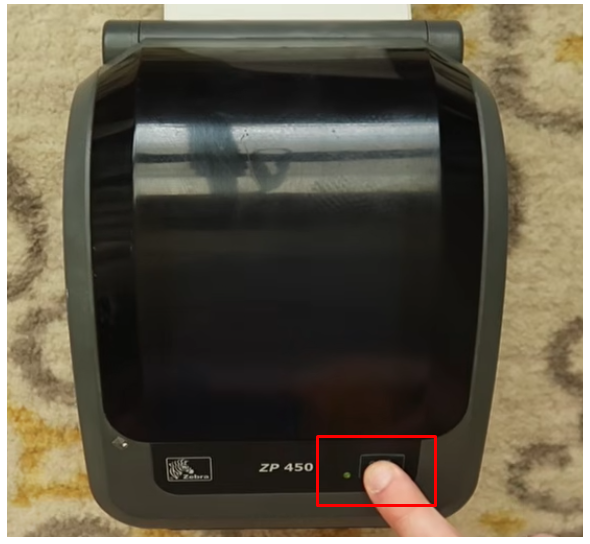

Feed button on the front of the ZP 450.

Step 6

The printer will begin calibration automatically and feed several labels to confirm…

Printer feeding labels during calibration.

Note: A successful calibration ends with the printer feeding a short series of blank test labels and returning to a steady, non-blinking status light. If the light continues to blink or flash an error pattern, reseat the label roll and repeat the process.

Step 7

Method 2: Calibration via Windows

Use this method when the printer is connected to a Windows PC and the Zebra driver/software has already been installed.

Step 8

Connect the printer to the computer and confirm the Zebra printer driver is installed.

Step 9

Open Windows Settings.

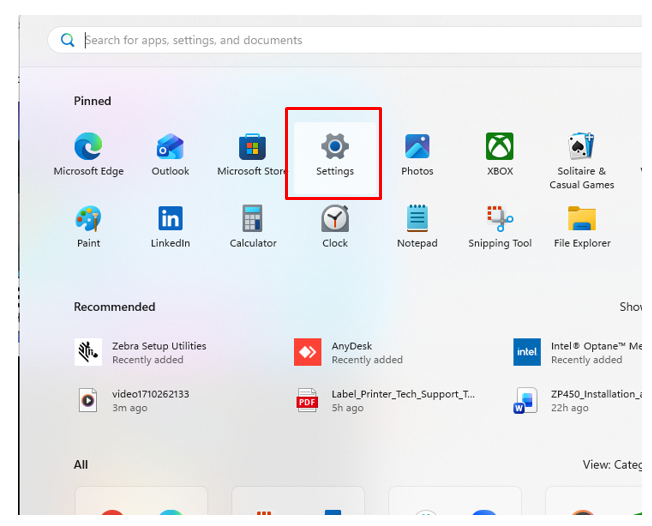

Opening Settings from the Windows Start menu.

Step 10

Go to Bluetooth & devices, then select Printers & scanners.

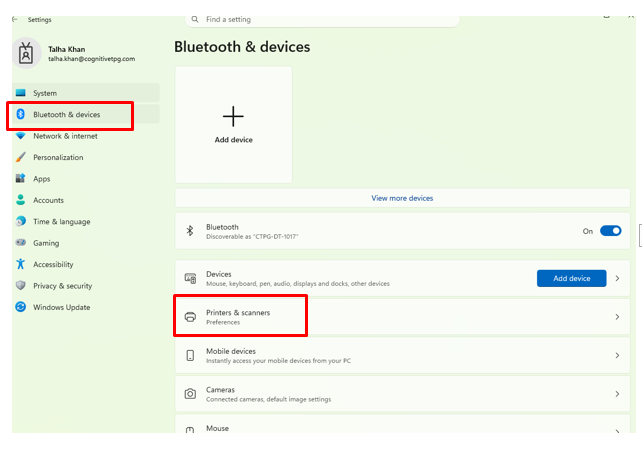

Bluetooth & devices > Printers & scanners.

Step 11

Select the target printer from the list (for example, Zebra ZP 450), then click Printer…

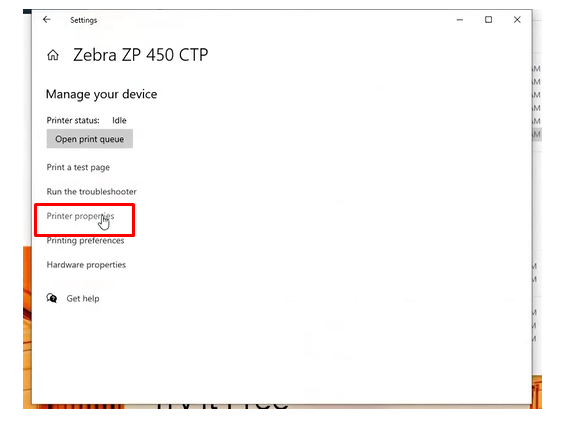

Selecting Printer properties for the Zebra ZP 450.

Step 12

Open the Tools tab and select Run Calibration.

Step 13

Wait for the calibration routine to complete, then click OK to confirm.

Note: Calibration is complete once Windows reports the routine finished successfully and the printer has fed its confirmation labels. If the option is greyed out, reinstall or update the Zebra printer driver and try again.

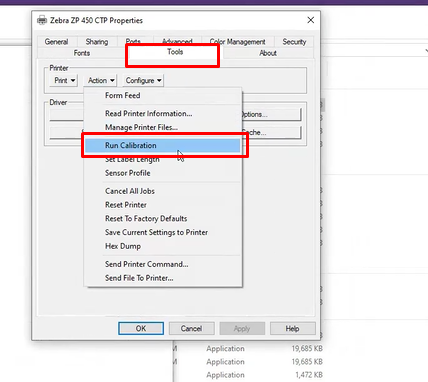

Tools tab > Run Calibration in Printer Properties.
Tools tab > Run Calibration in Printer Properties.

Step 14

Sensor Cleaning

If calibration does not complete successfully even after the label roll and driver have been checked, the media sensor may be dirty or obstructed.

  • Power off the printer.
  • Gently wipe the sensor window (located inside the media compartment) with a clean cloth or swab lightly dampened with isopropyl alcohol.
  • Allow the sensor to dry fully before reloading media and recalibrating.

Gently cleaning the media sensor area inside the printer.

Troubleshooting Tips

  • Printer feeds continuously without stopping: the sensor may not be detecting gaps or black marks — recalibrate with the correct media loaded.
  • Status light blinks red or shows an error pattern: check that the label roll and ribbon (if used) are loaded correctly, then retry calibration.
  • Calibration succeeds but print position drifts over time: recalibrate after any change in label stock, and confirm the label length setting in the driver matches the physical label.
  • Sensor fails to detect labels even after recalibration: see Sensor Cleaning above.
Reference: Zebra ZP series calibration procedure (manual and Windows driver methods).
Reference: Zebra ZP series calibration procedure (manual and Windows driver methods).
