Zebra ZD Series Printer, Wireless (Wi-Fi) Setup Guide (Windows)

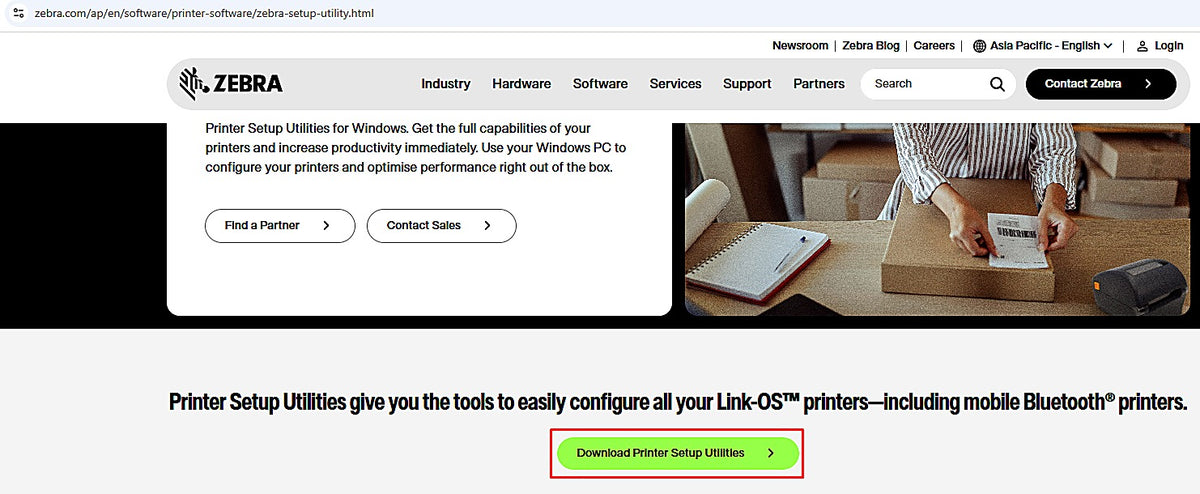

• Open a web browser and go to zebra.com/ap/en/software/printer-software/zebra-setup-utility.html.
• Click Download Printer Setup Utilities.
• Run the downloaded installer once it finishes.

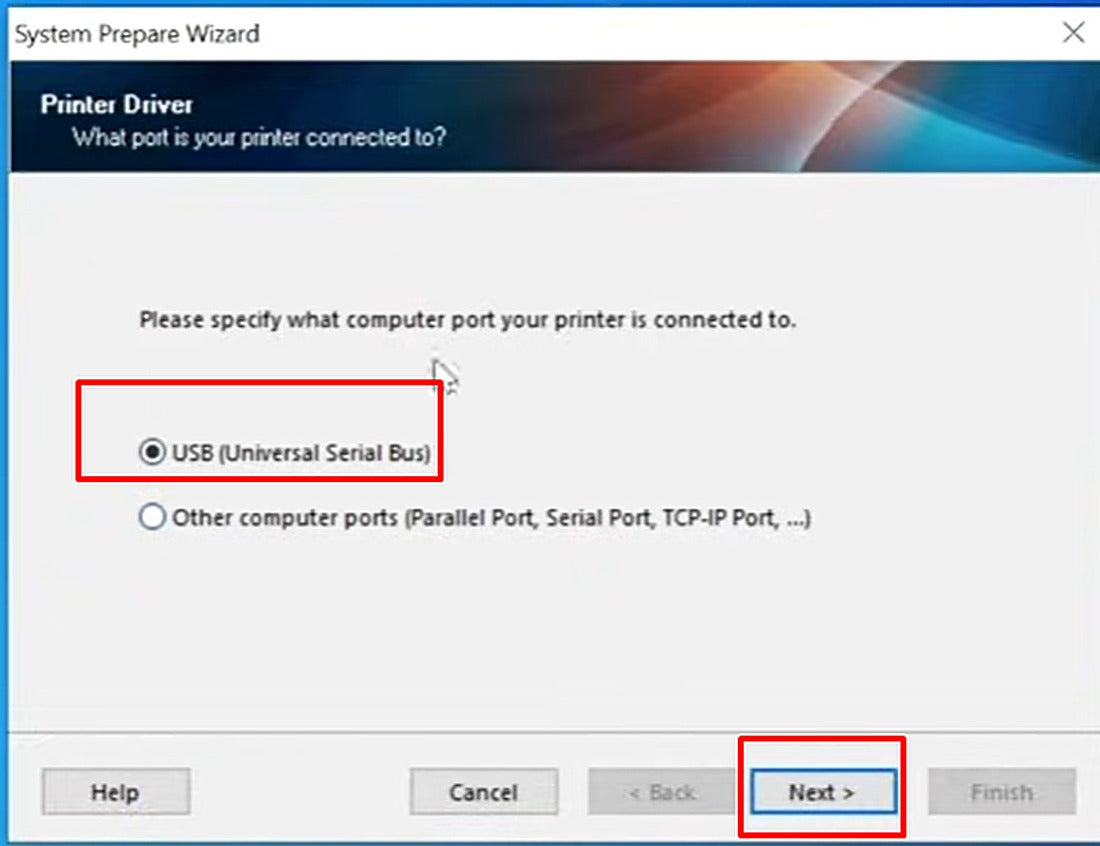

When the setup wizard opens, select USB (Universal Serial Bus) as the port your printer is connected to, then click Next.

Connect the printer to a USB port and power it on. Windows will usually install the driver automatically.

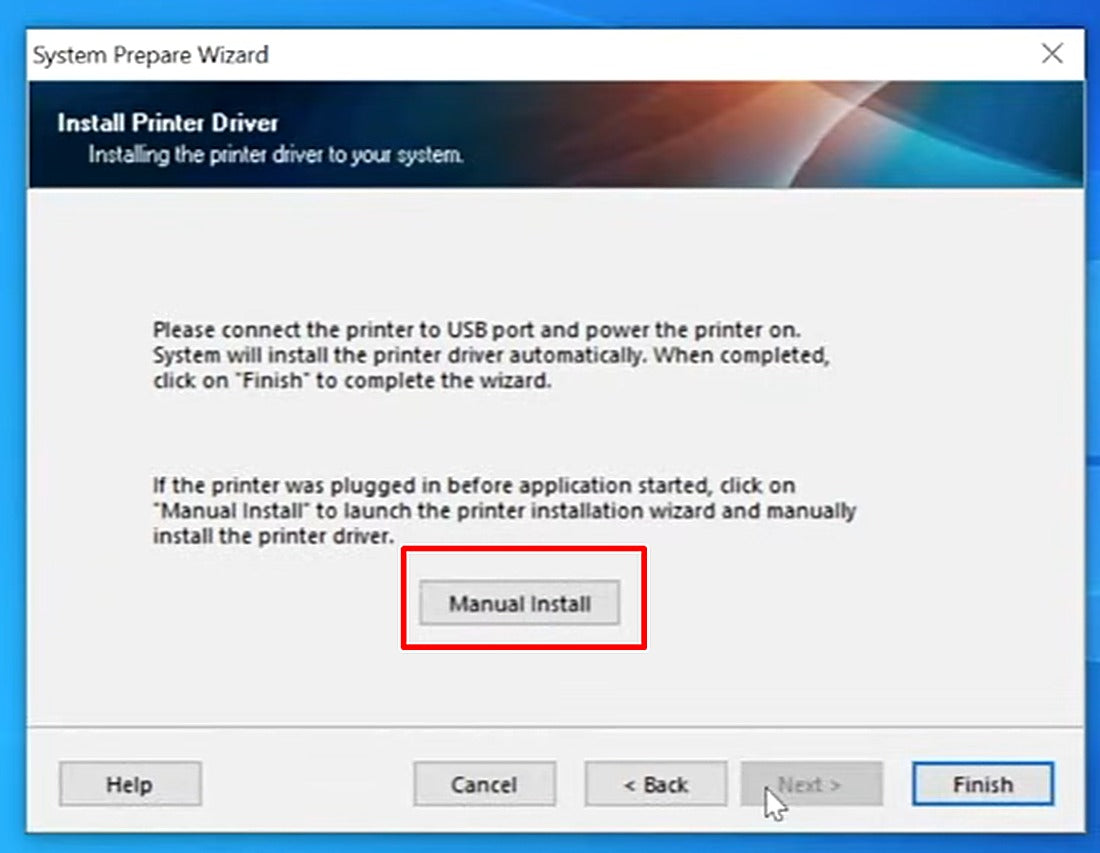

If the printer was already plugged in before you started the utility, click Manual Install instead to launch the printer installation wizard yourself.

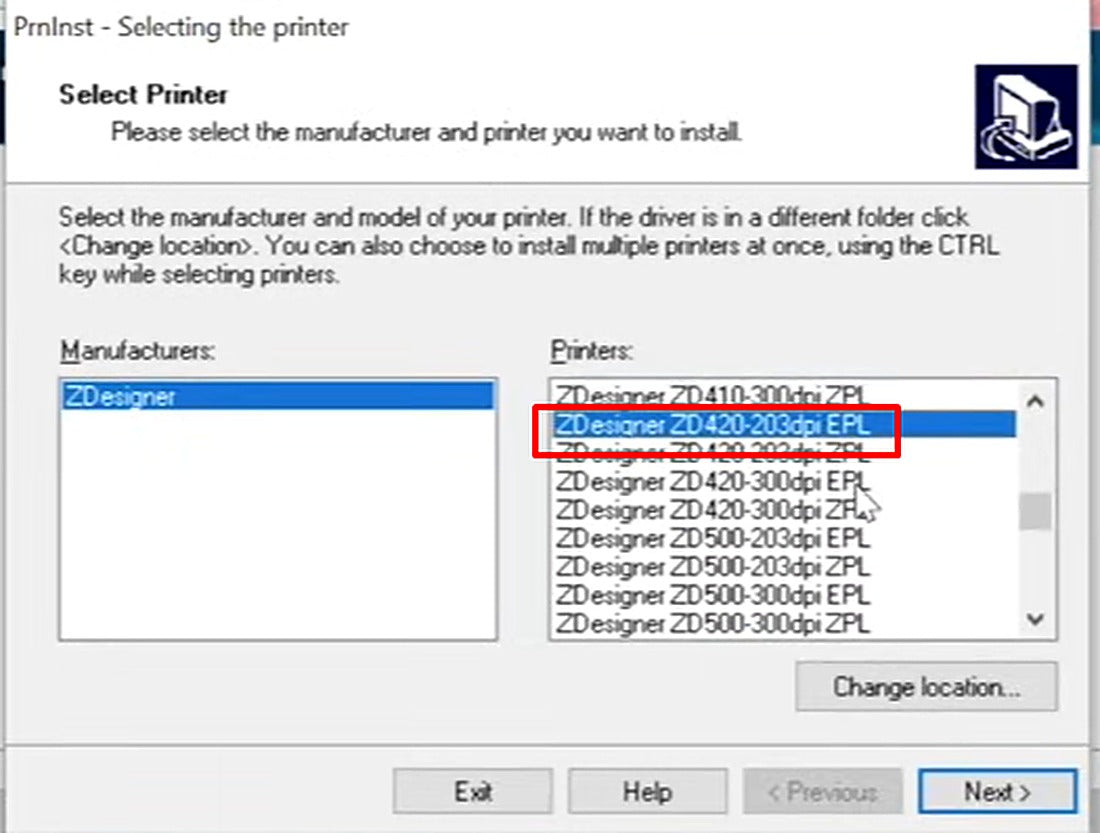

Under Manufacturers, select ZDesigner, then choose your exact printer model and print language from the list on the right (for example, ZDesigner ZD420-203dpi ZPL). Click Next.

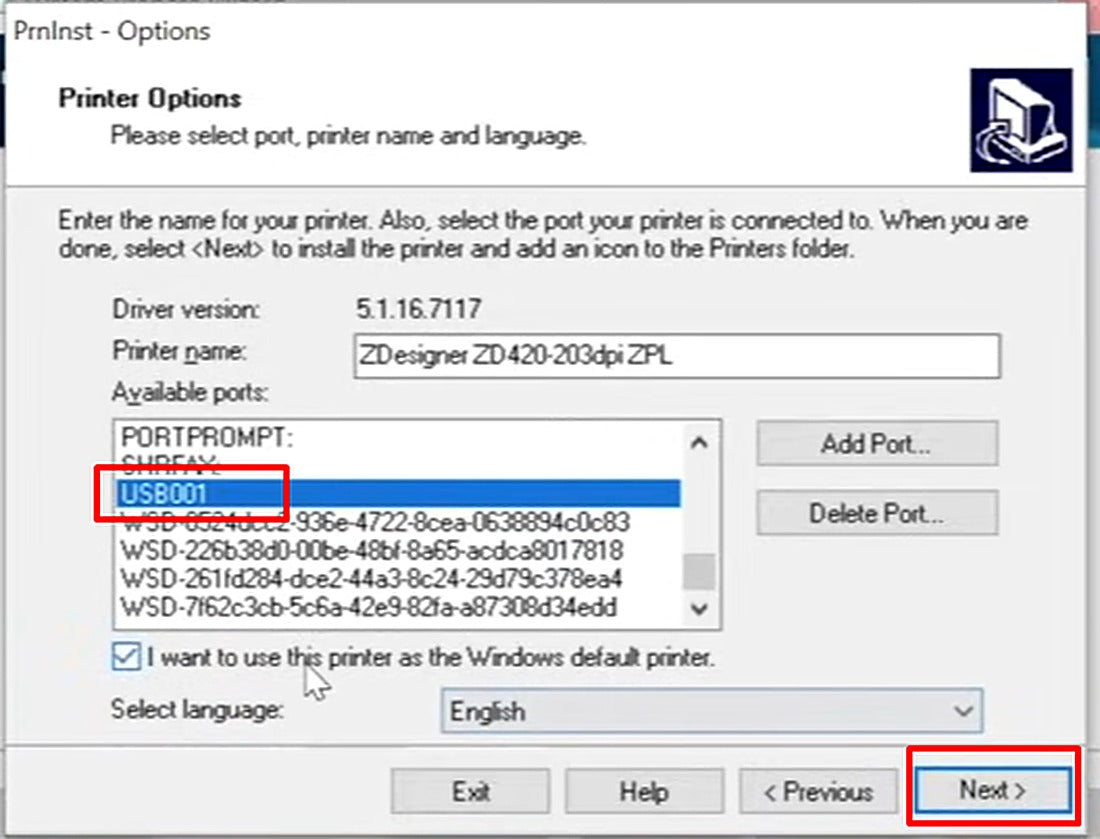

Confirm the printer name and select the available port the printer is connected to (typically USB001).

You can leave I want to use this printer as the Windows default printer checked if this will be your primary label printer. Click Next.

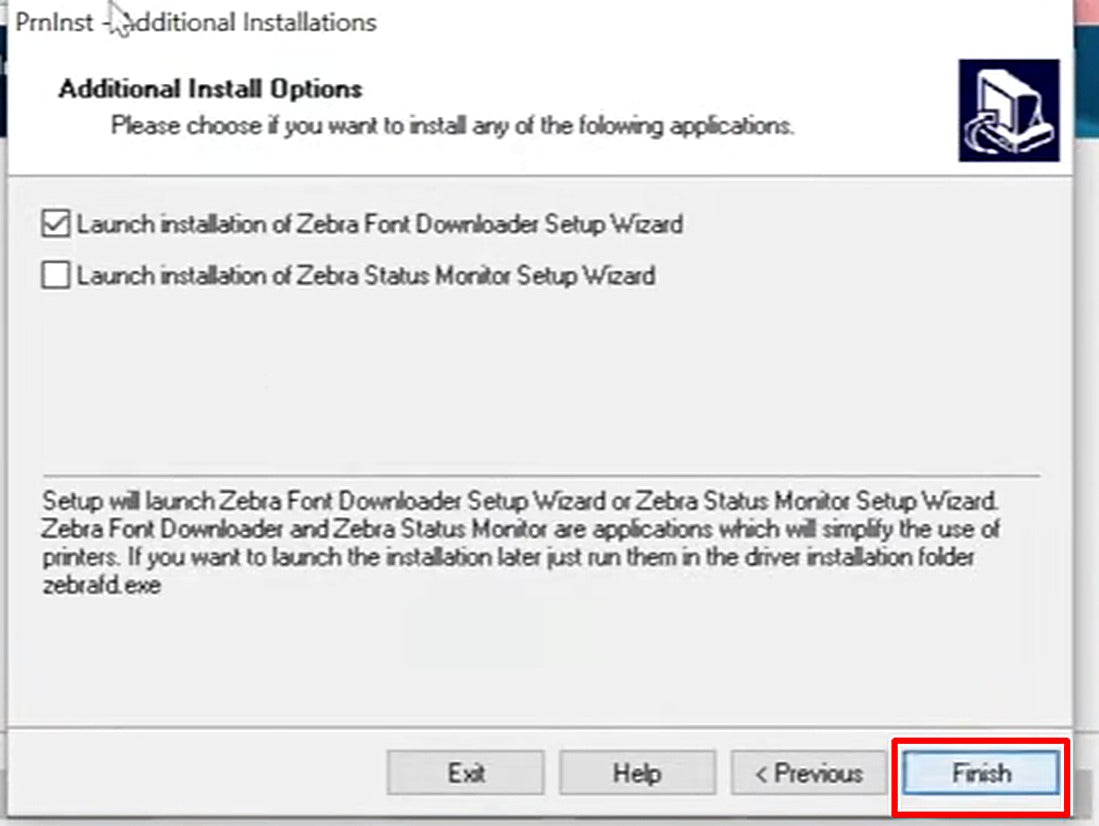

Optionally leave Launch installation of Zebra Font Downloader Setup Wizard checked for extra font support, then click Finish.

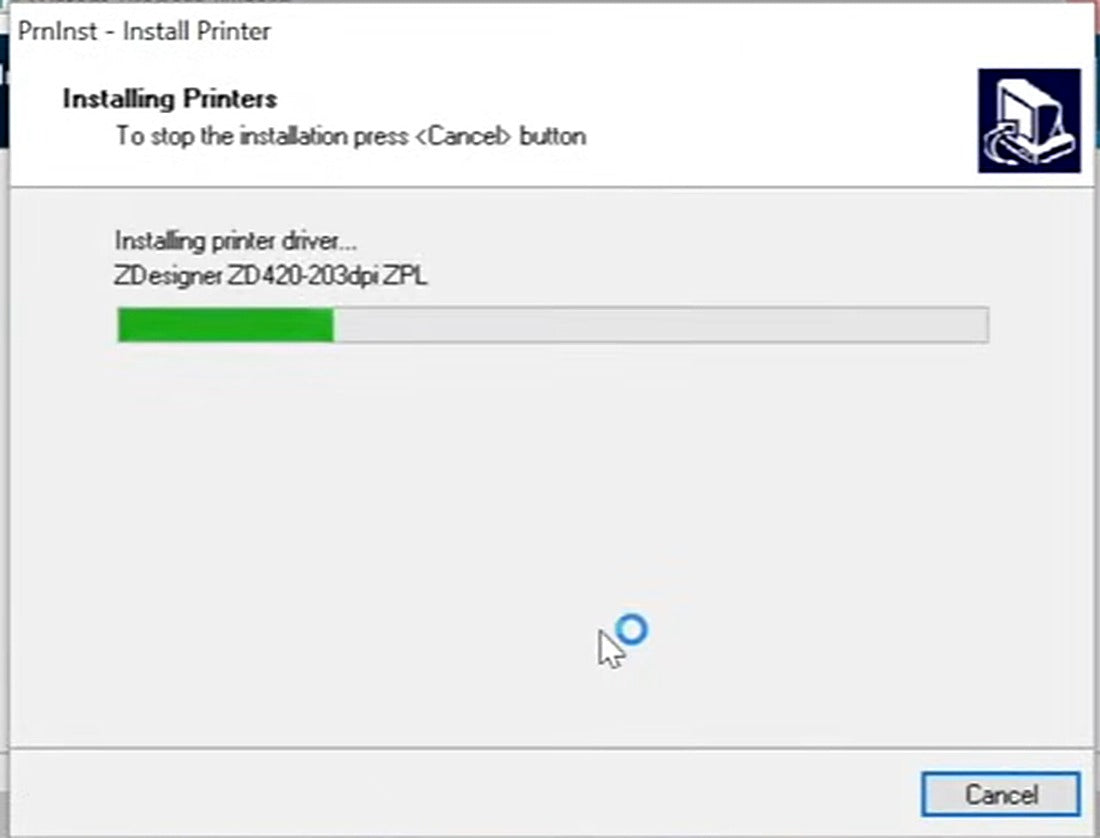

Windows installs the printer driver. This only takes a few moments — do not disconnect the printer while this is in progress.

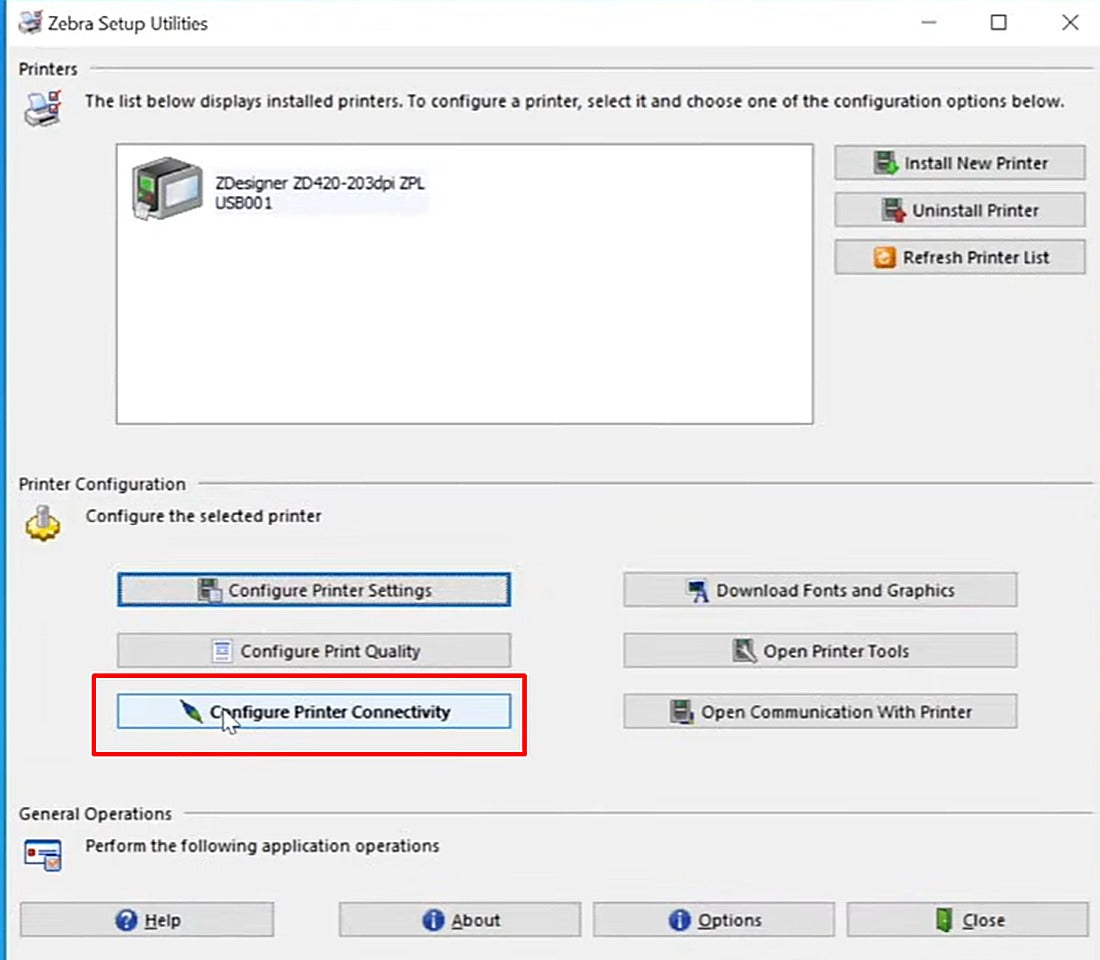

Once installation completes, your printer appears in the Zebra Setup Utilities window (for example, ZDesigner ZD420-203dpi ZPL on USB001). The driver installation over USB is now complete.

Part 2 — Configure the Printer for Wireless (Wi-Fi)

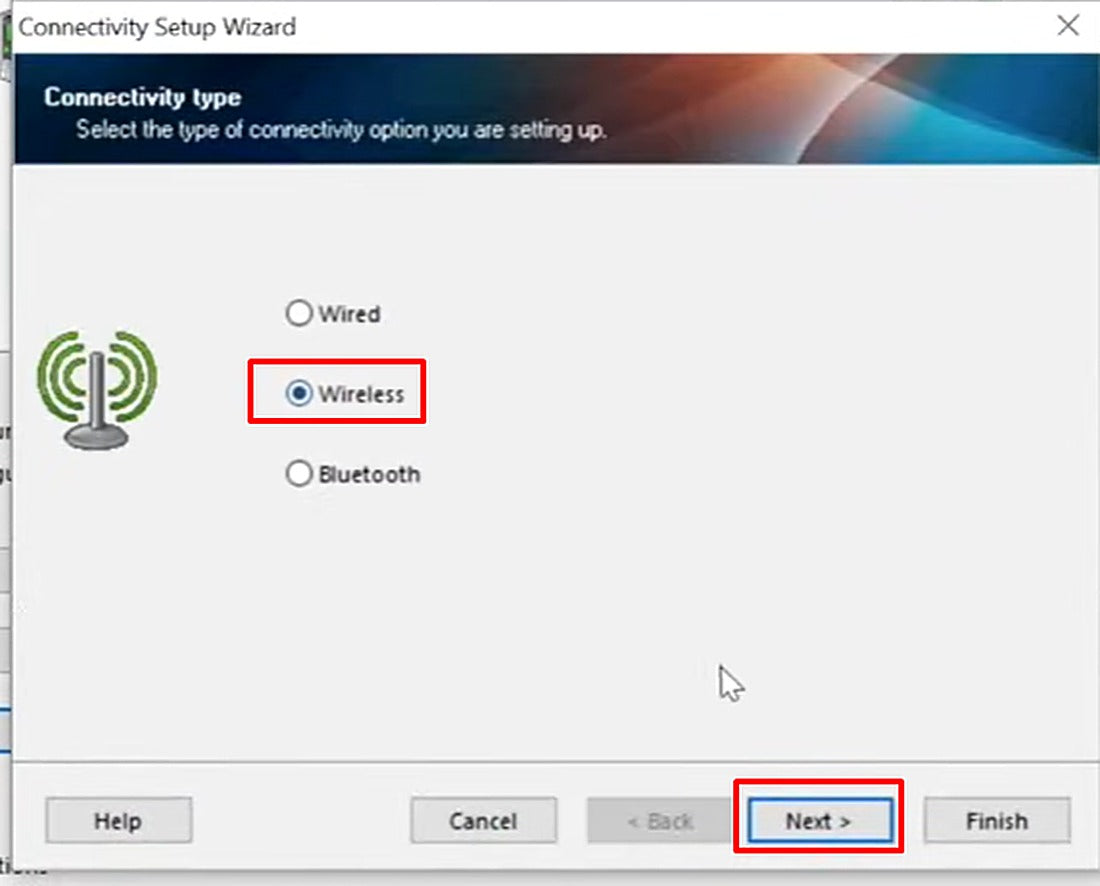

With the printer selected in Zebra Setup Utilities, click Configure Printer Connectivity. In the Connectivity Setup Wizard, choose Wireless and click Next.

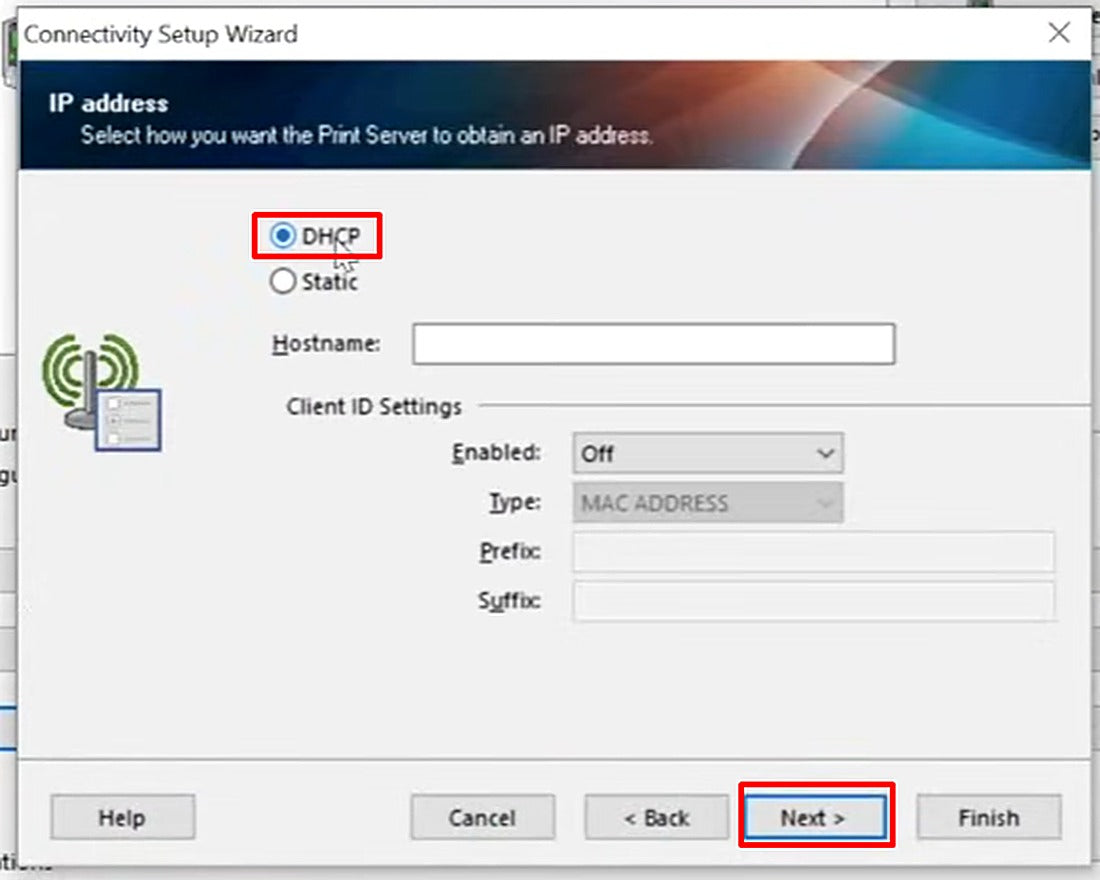

Select DHCP so the printer automatically obtains an IP address from your network router, then click Next. (Use Static only if your network requires a fixed IP address.)

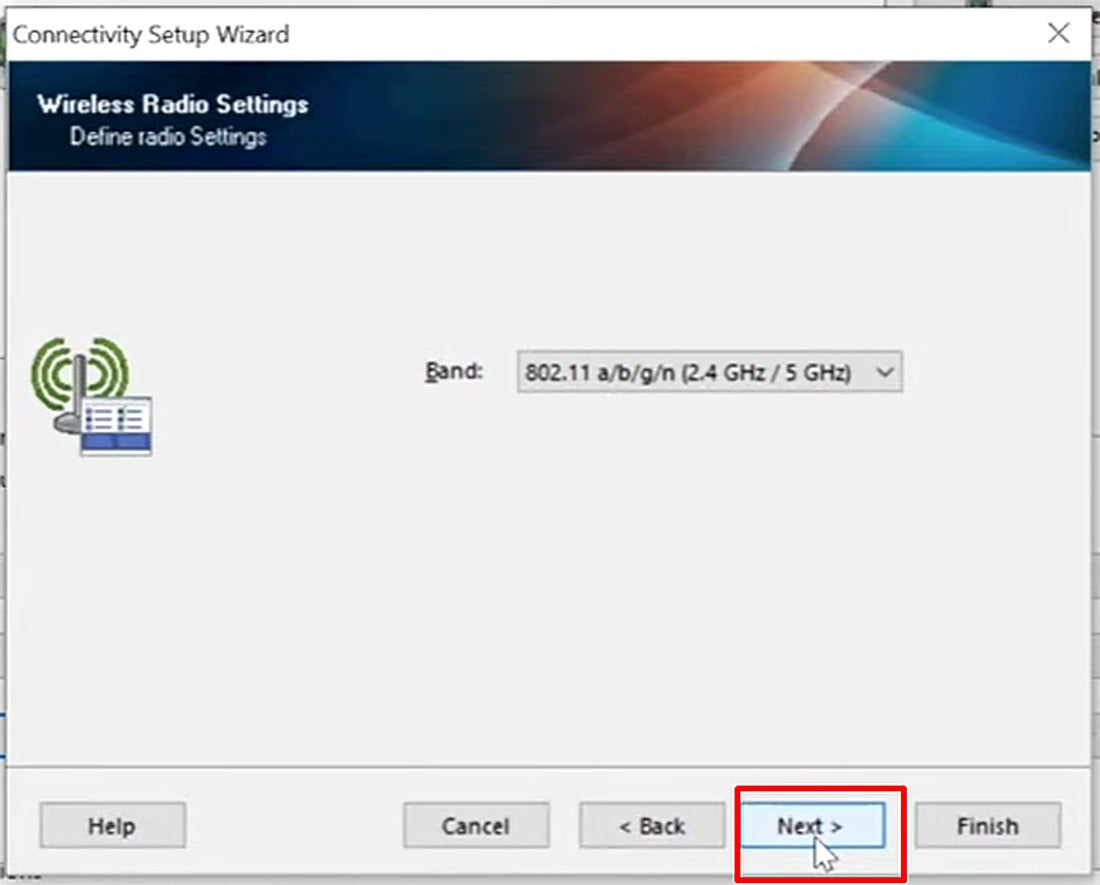

Leave the Band setting as-is (802.11 a/b/g/n) unless you have a specific reason to change it, then click Next.

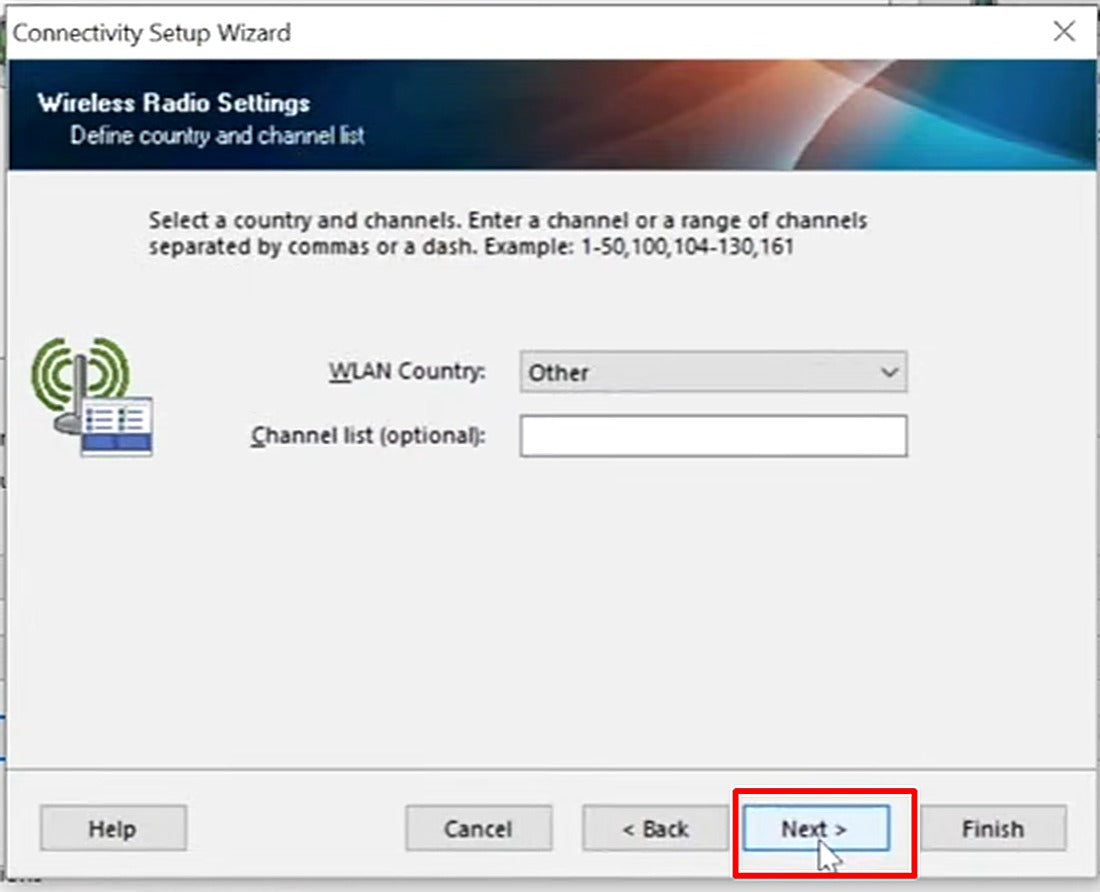

Leave the WLAN Country and Channel list fields at their defaults and click Next.

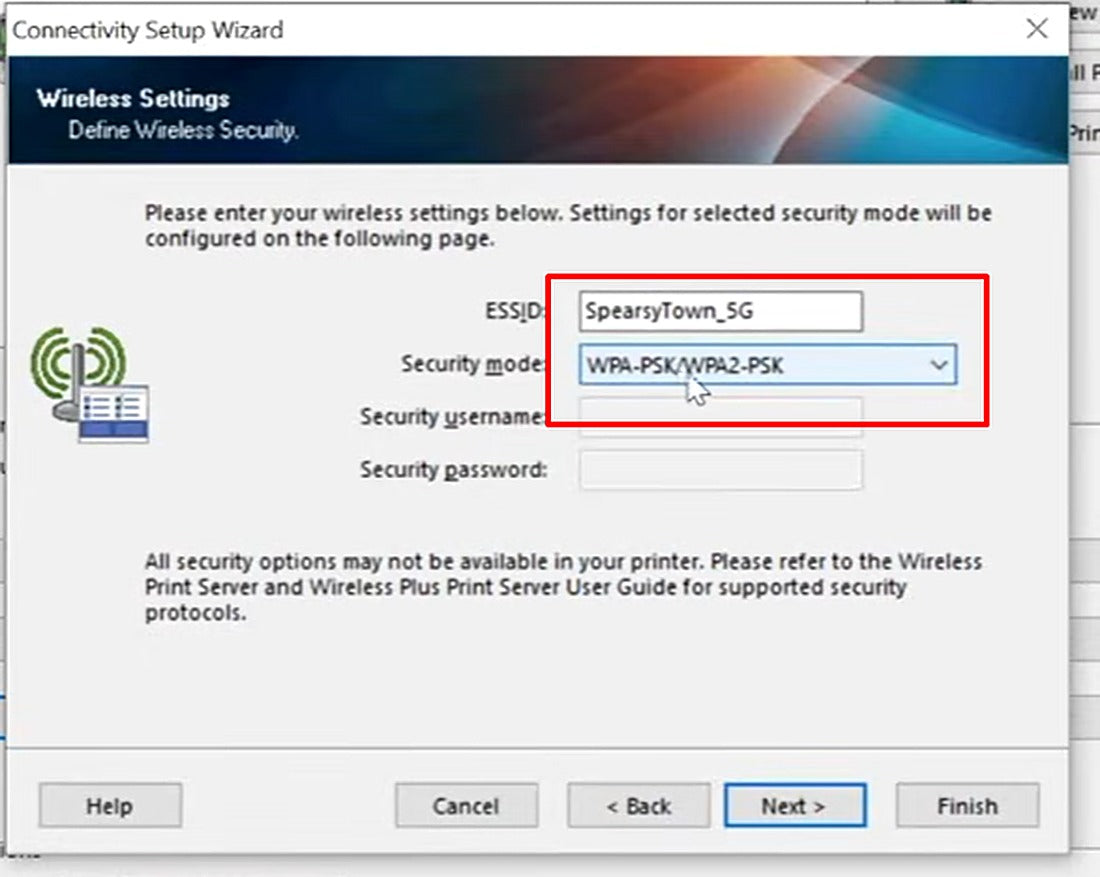

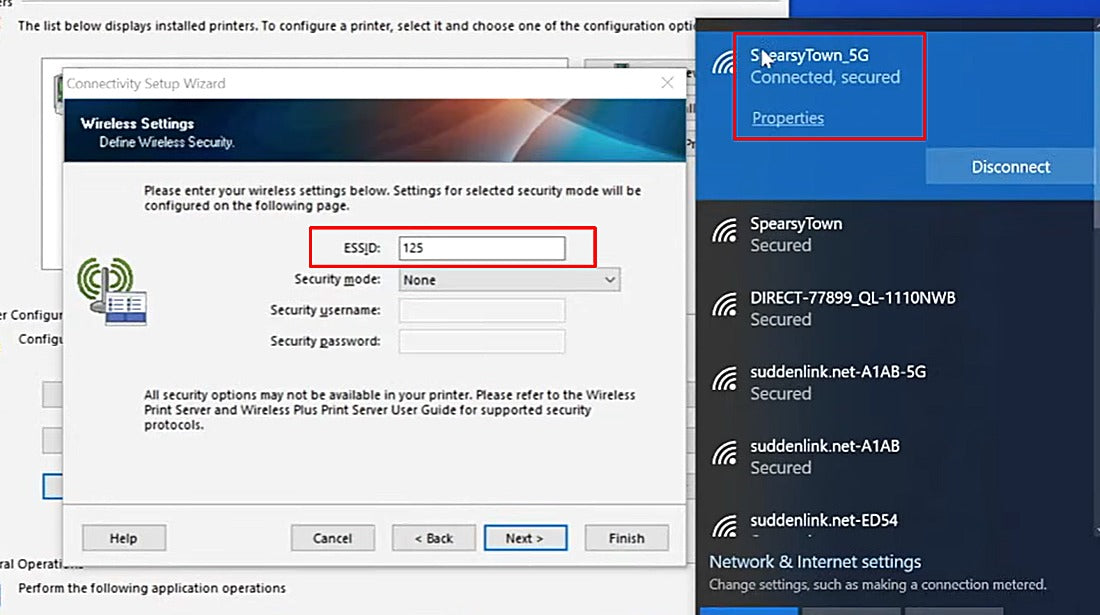

Under ESSID, type your Wi-Fi network's exact name. You can confirm the exact name from the Wi-Fi list in Windows if you're unsure of the spelling or capitalization.

Under Security mode, select the option that matches your network's security type. Most home and office networks use WPA-PSK/WPA2-PSK. Click Next.

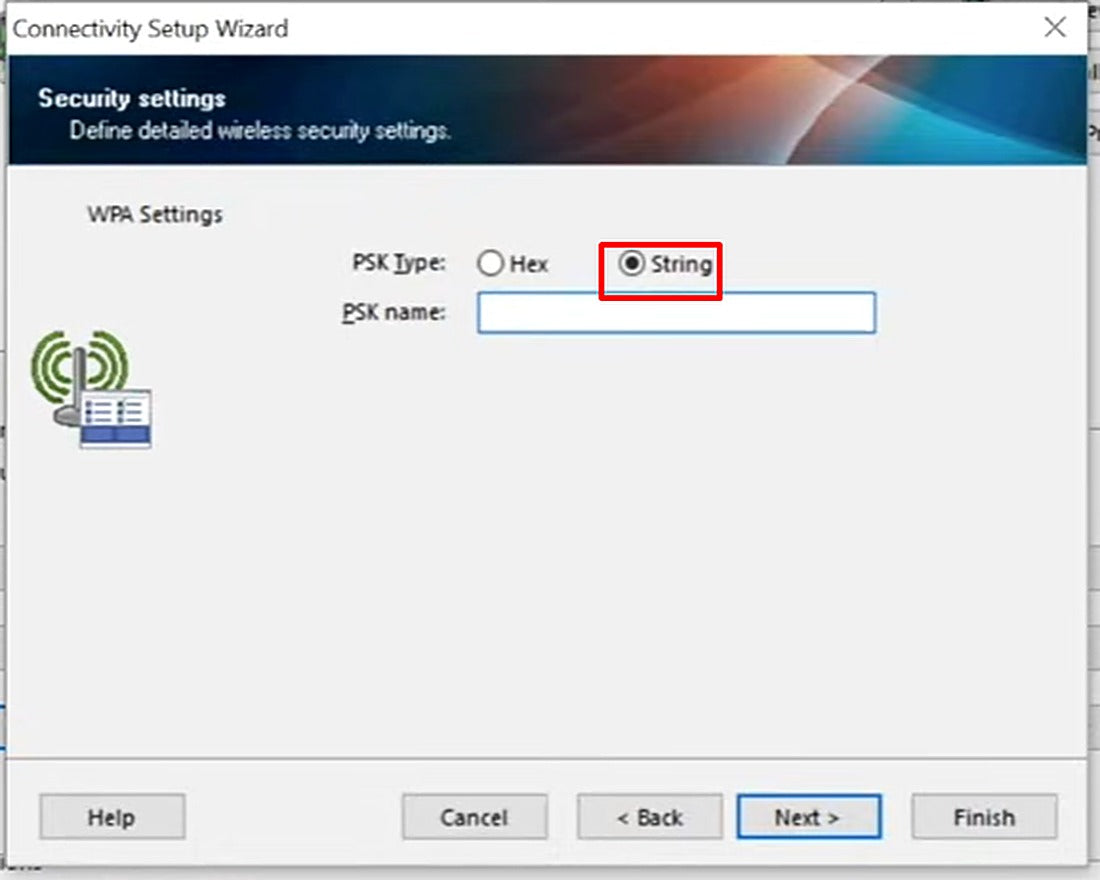

Select String as the PSK type and enter your Wi-Fi network's password under PSK name. Click Next.

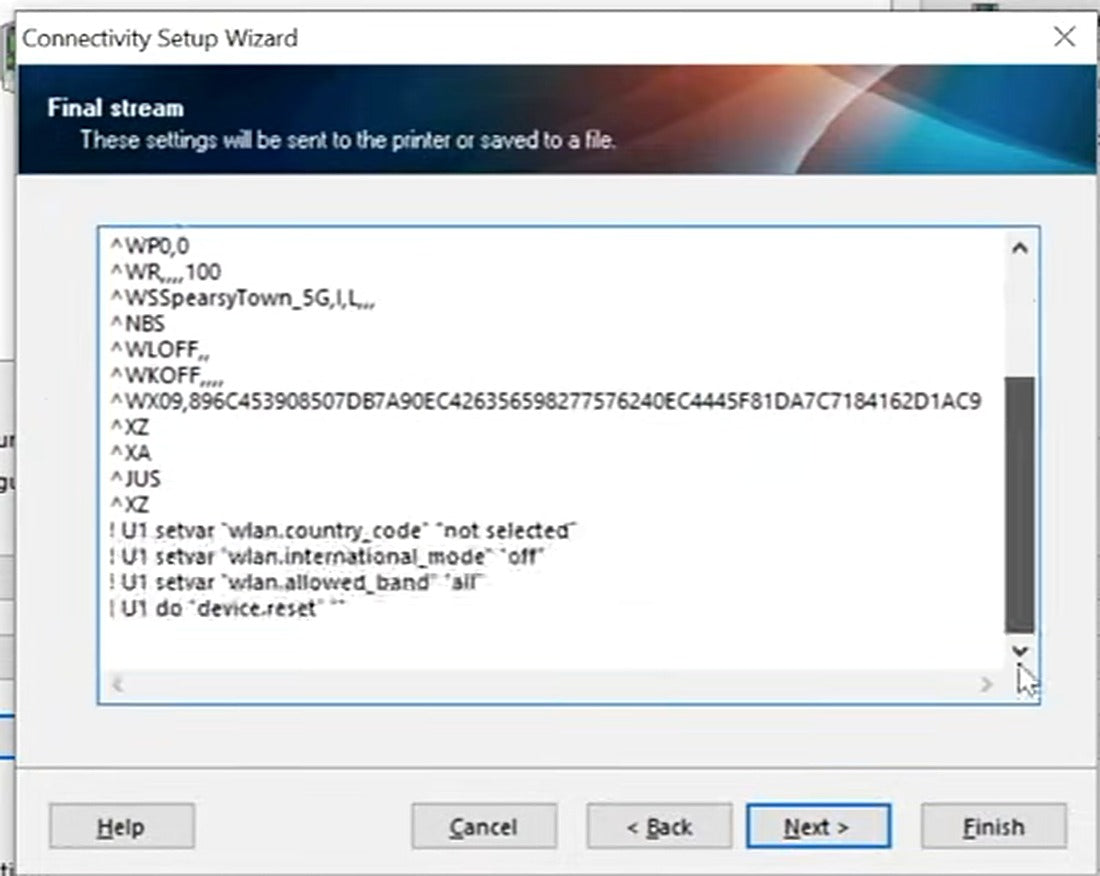

The wizard builds the ZPL configuration commands that encode your Wi-Fi settings. You don't need to edit this — just review it and click Next.

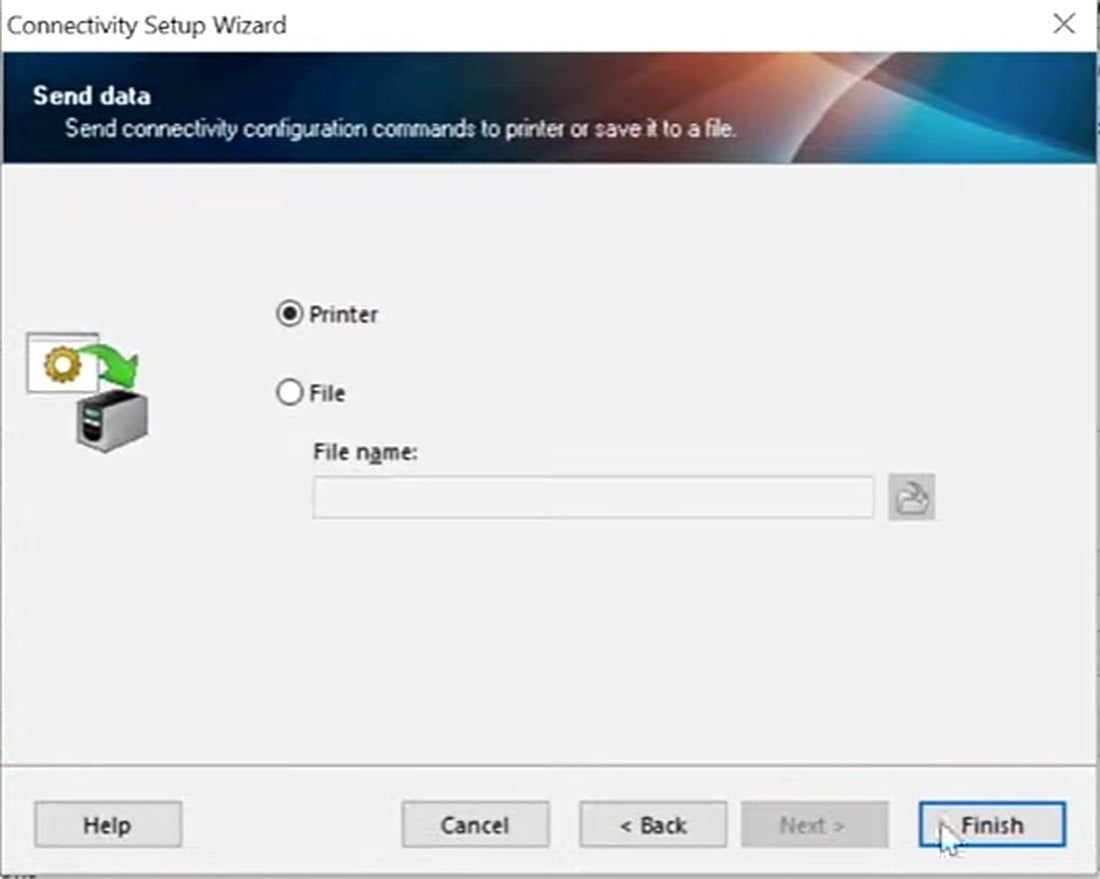

Make sure Printer is selected (rather than saving to a file) and click Finish. This sends the wireless configuration command directly to the printer over the USB connection.

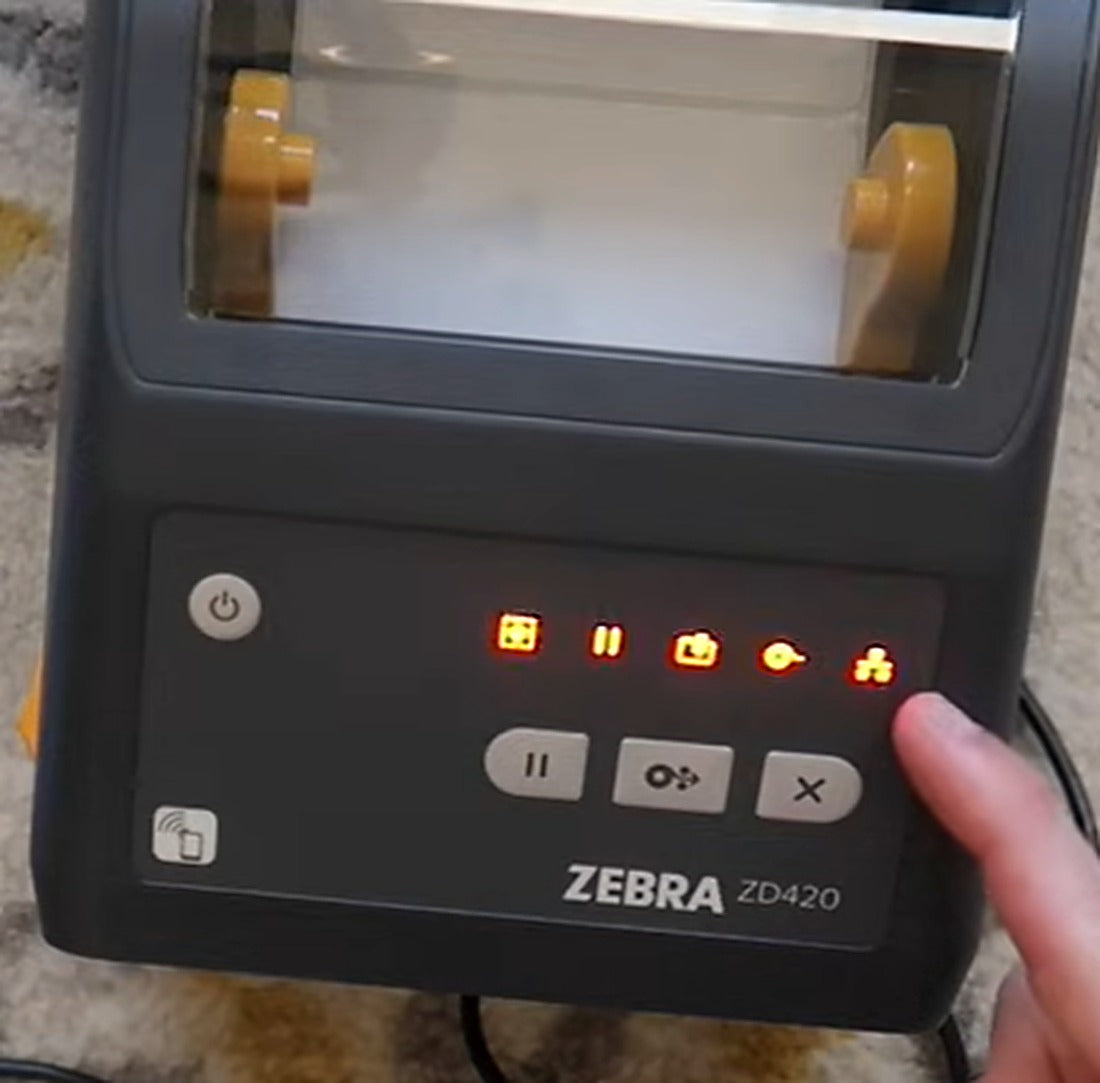

The printer briefly resets its network interface and attempts to join your Wi-Fi network. Watch the network status icon on the front panel while this happens.

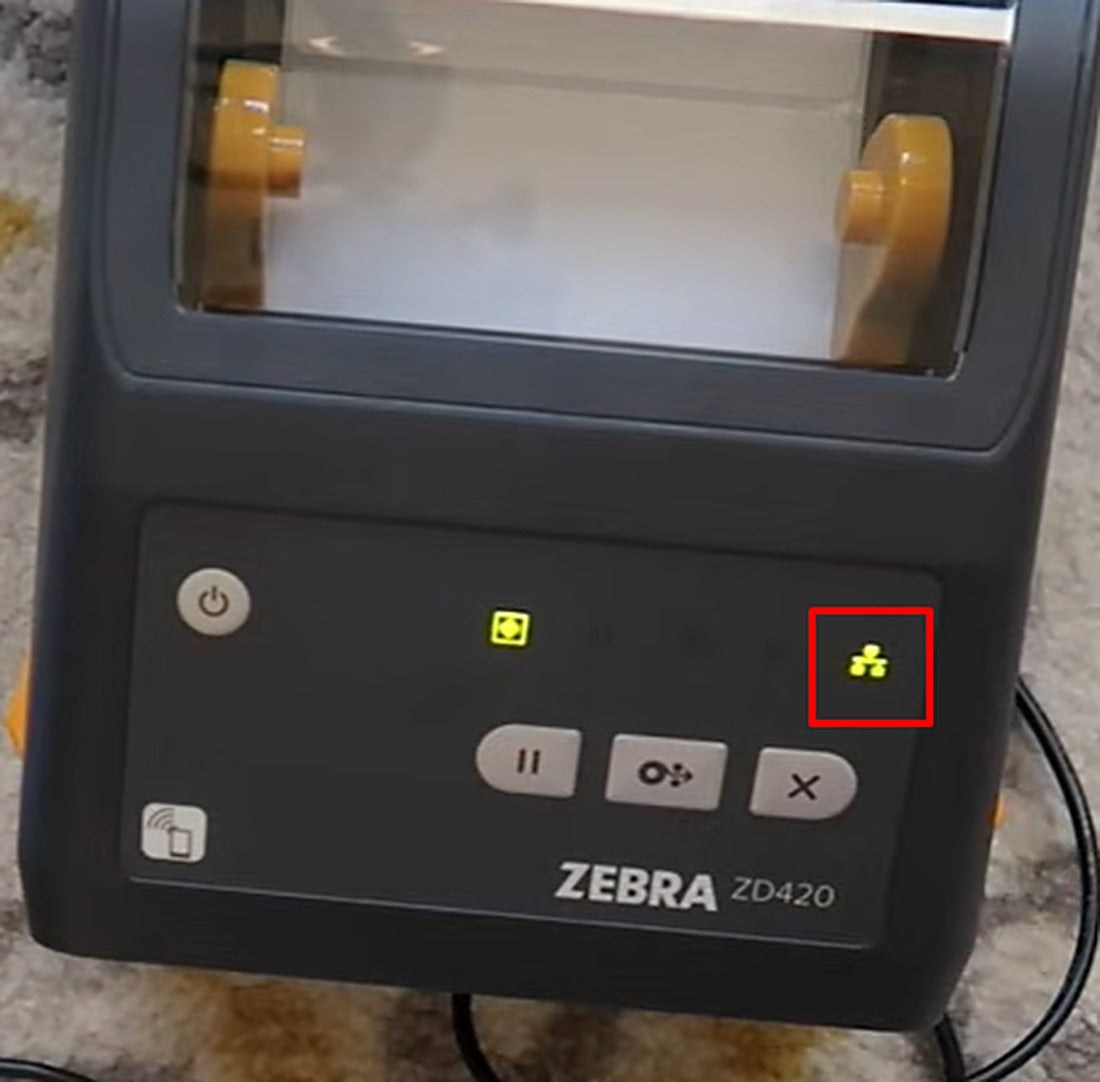

Once the printer successfully connects to your Wi-Fi network, the network status light turns green. If it stays red, double-check the ESSID and password and repeat Steps 13–17.

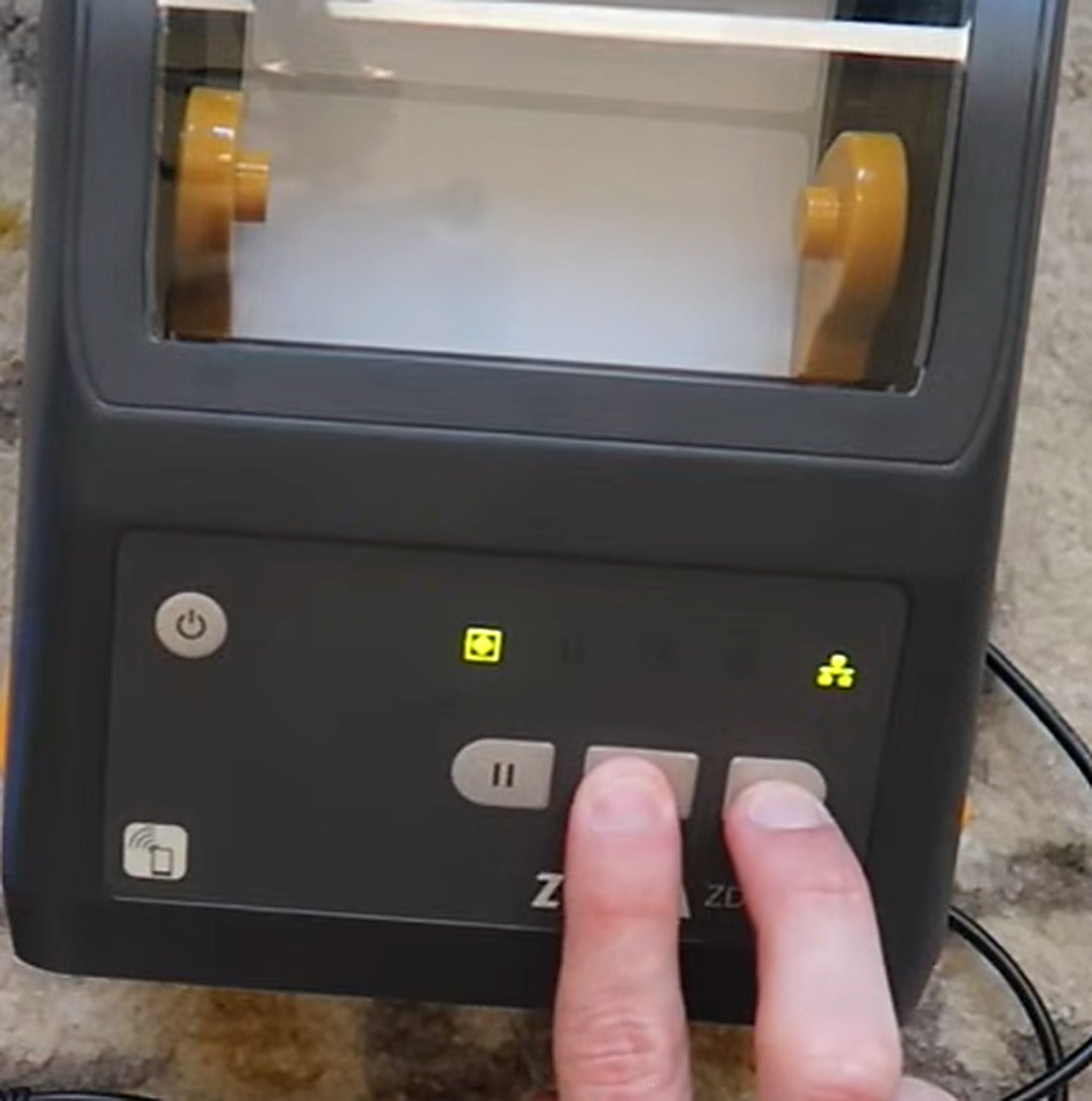

With the printer powered on and label stock loaded, press and hold the Cancel and Feed buttons together to print a status label showing the printer's current network settings.

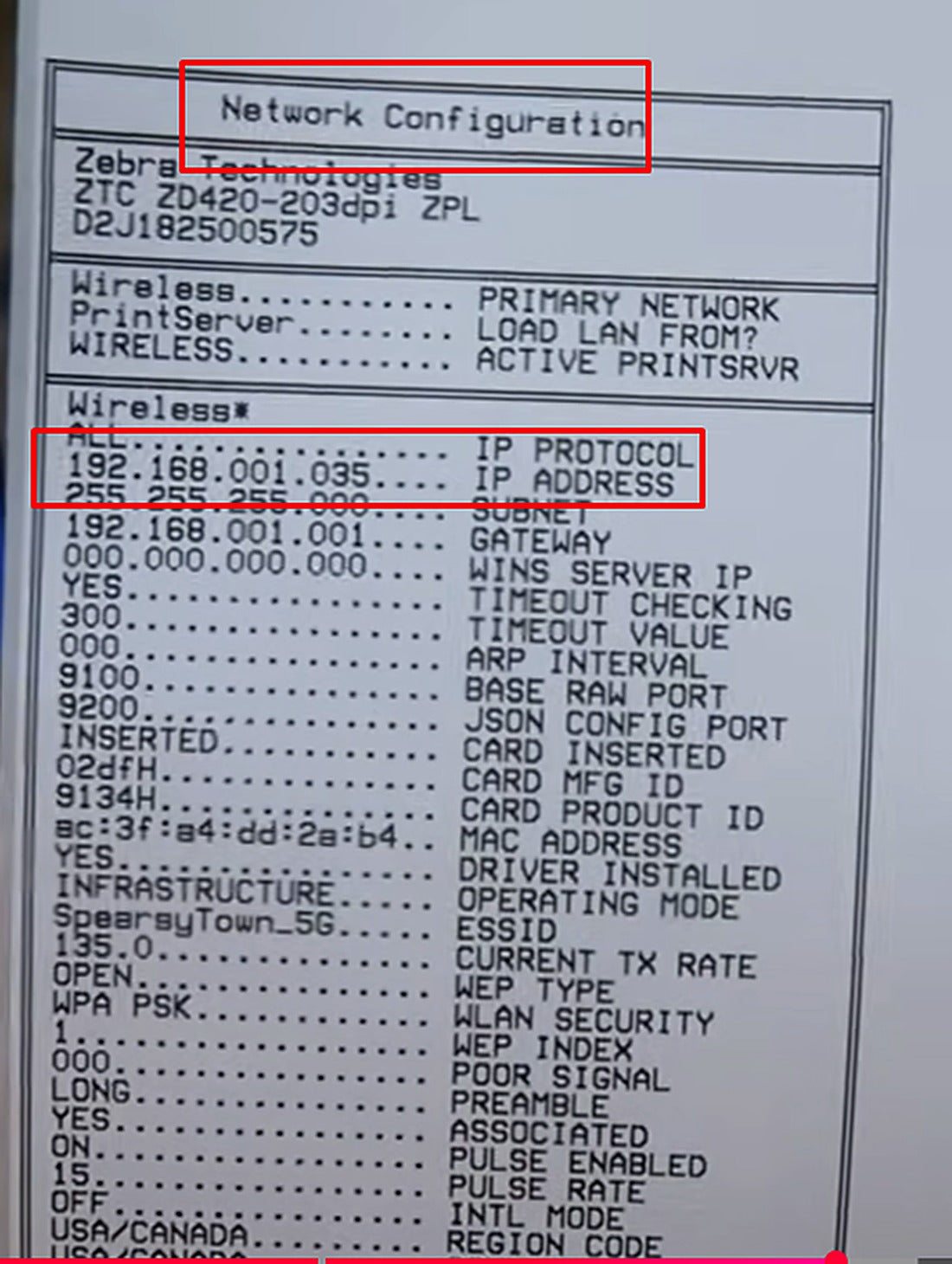

On the printed label, find the Wireless section and note the IP Address value (for example, 192.168.1.35). You will need this address in the next part.

The printer is now on your Wi-Fi network, but Windows is still set up to print to it over the original USB connection. The final steps add a network (TCP/IP) port and point the existing printer driver at it, so it prints wirelessly.

Part 3 — Switch Windows to Print Over the Network

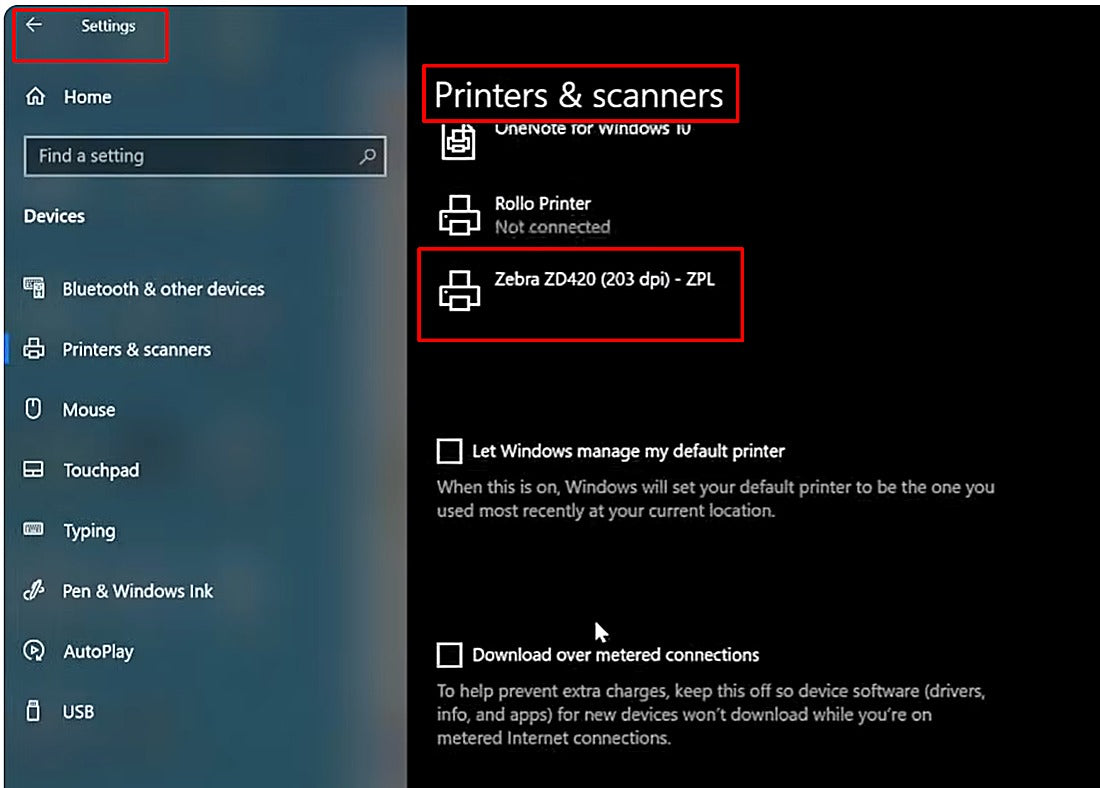

Open Settings on your Windows PC, go to Devices > Printers & scanners, and select your Zebra printer from the list (for example, Zebra ZD420 (203 dpi) - ZPL).

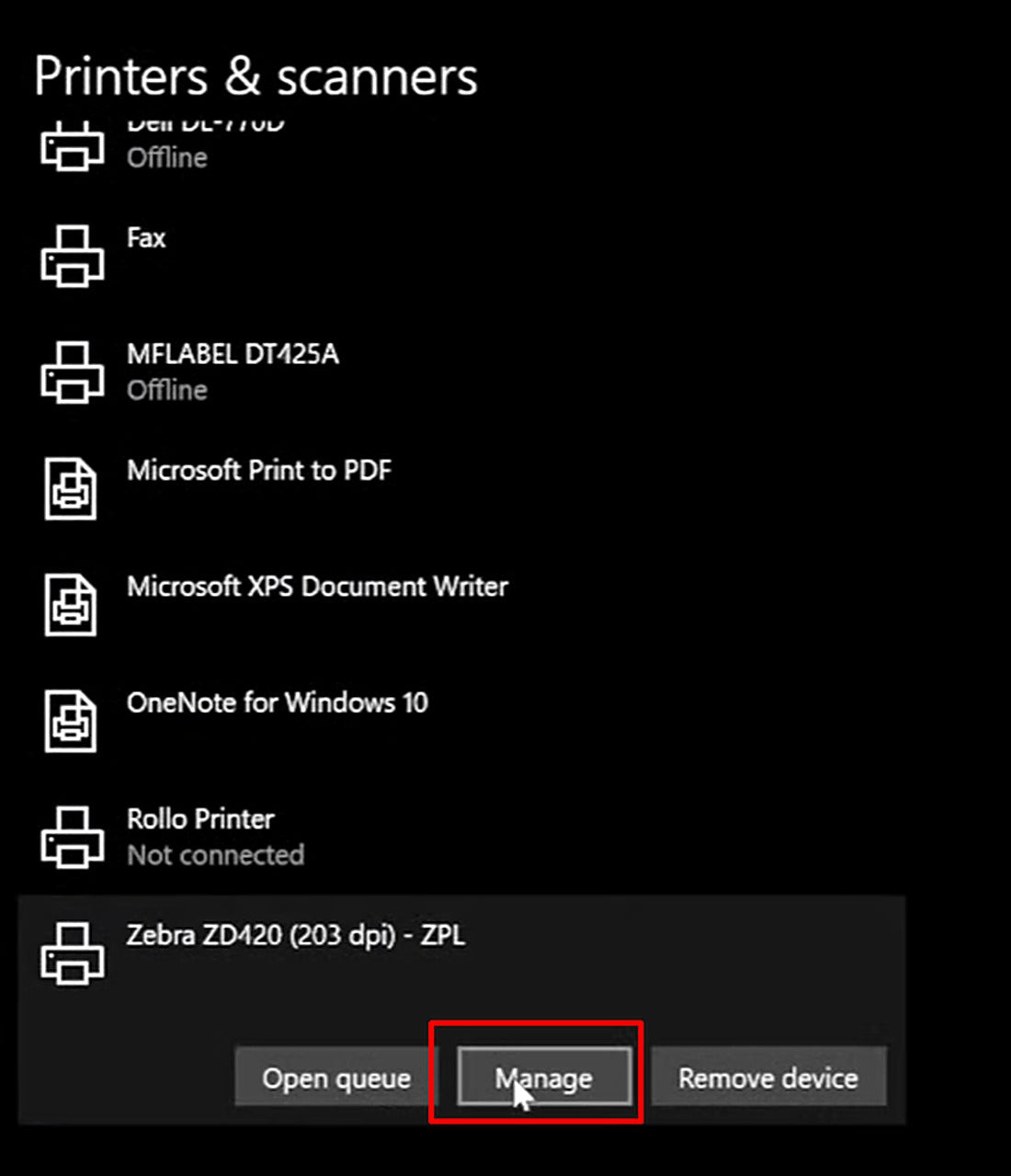

With the printer selected, click Manage.

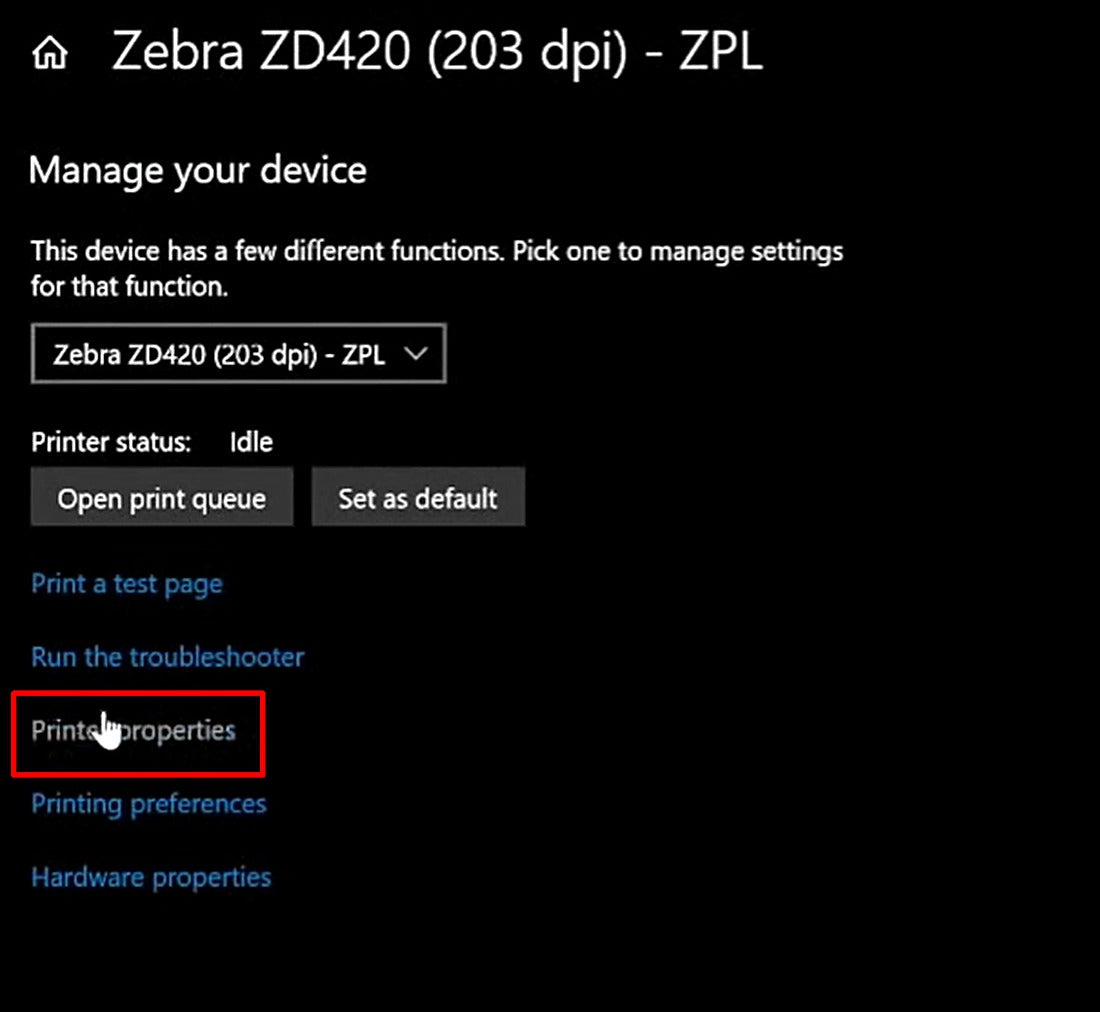

On the Manage your device screen, click Printer properties.

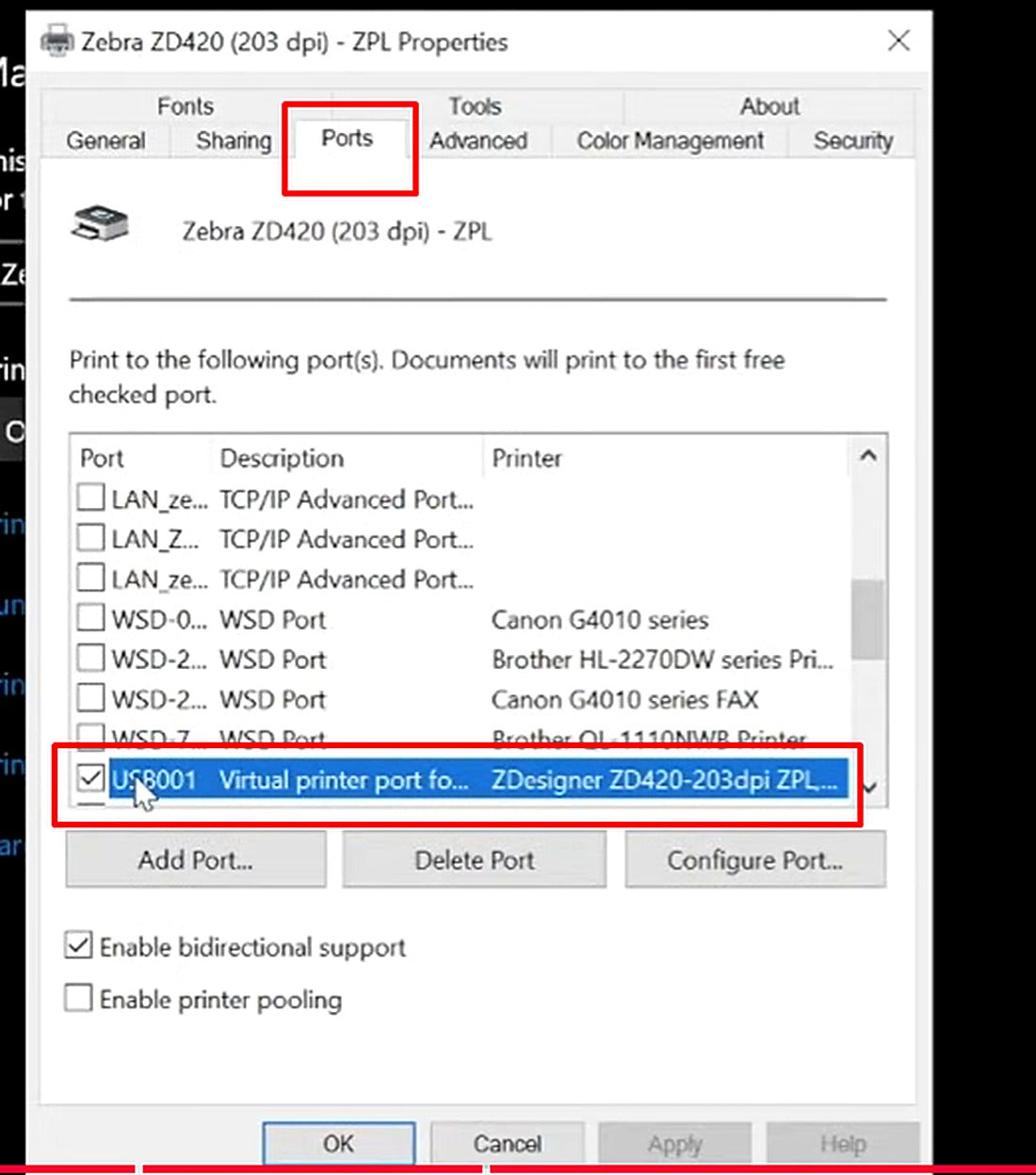

In the printer's Properties window, click the Ports tab. Right now the printer is using the USB001 port from the original USB installation — this is what needs to change.

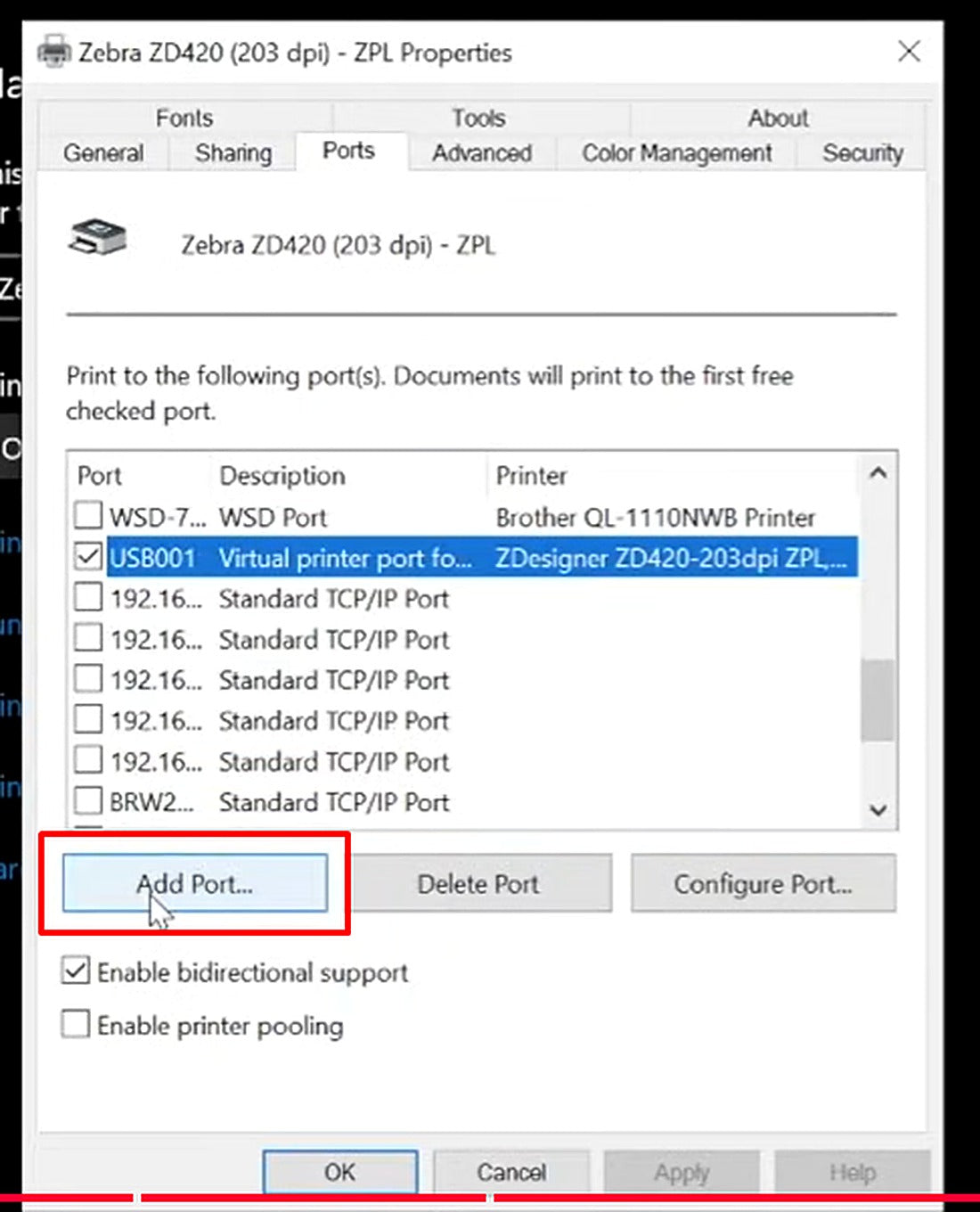

Click Add Port to create a new port that points to the printer's network address.

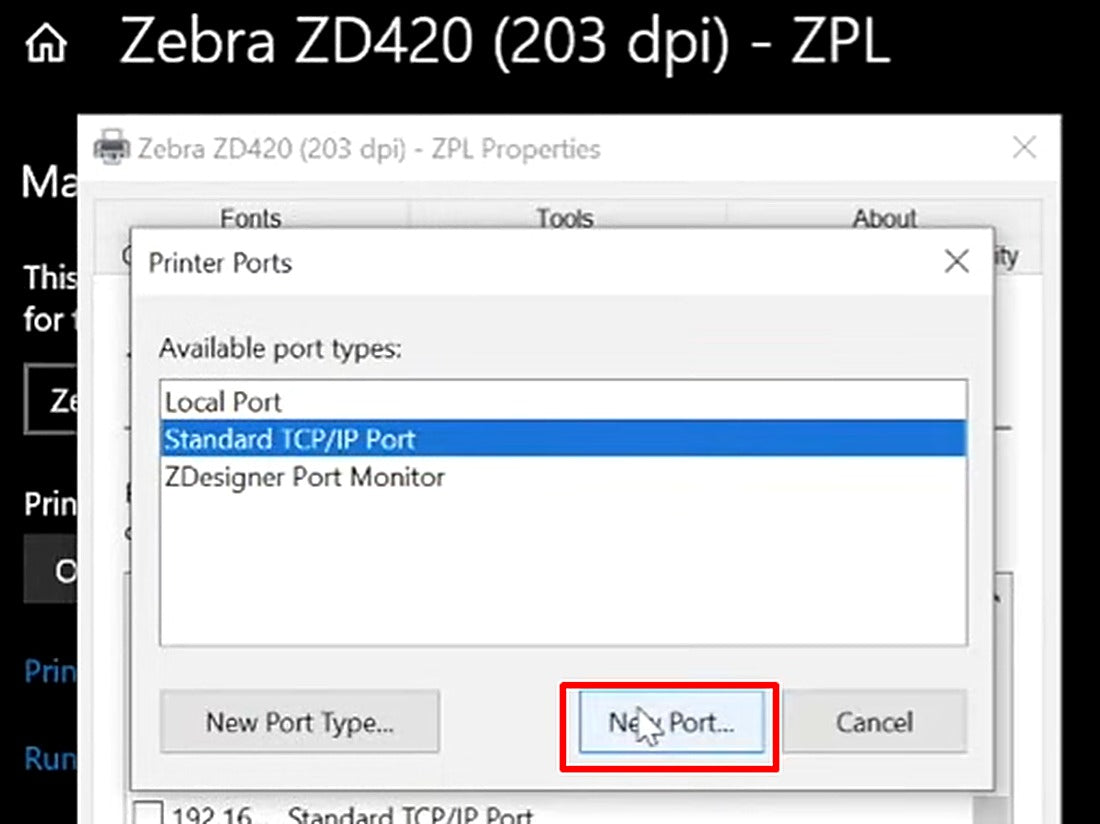

In the Printer Ports dialog, select Standard TCP/IP Port and click New Port.

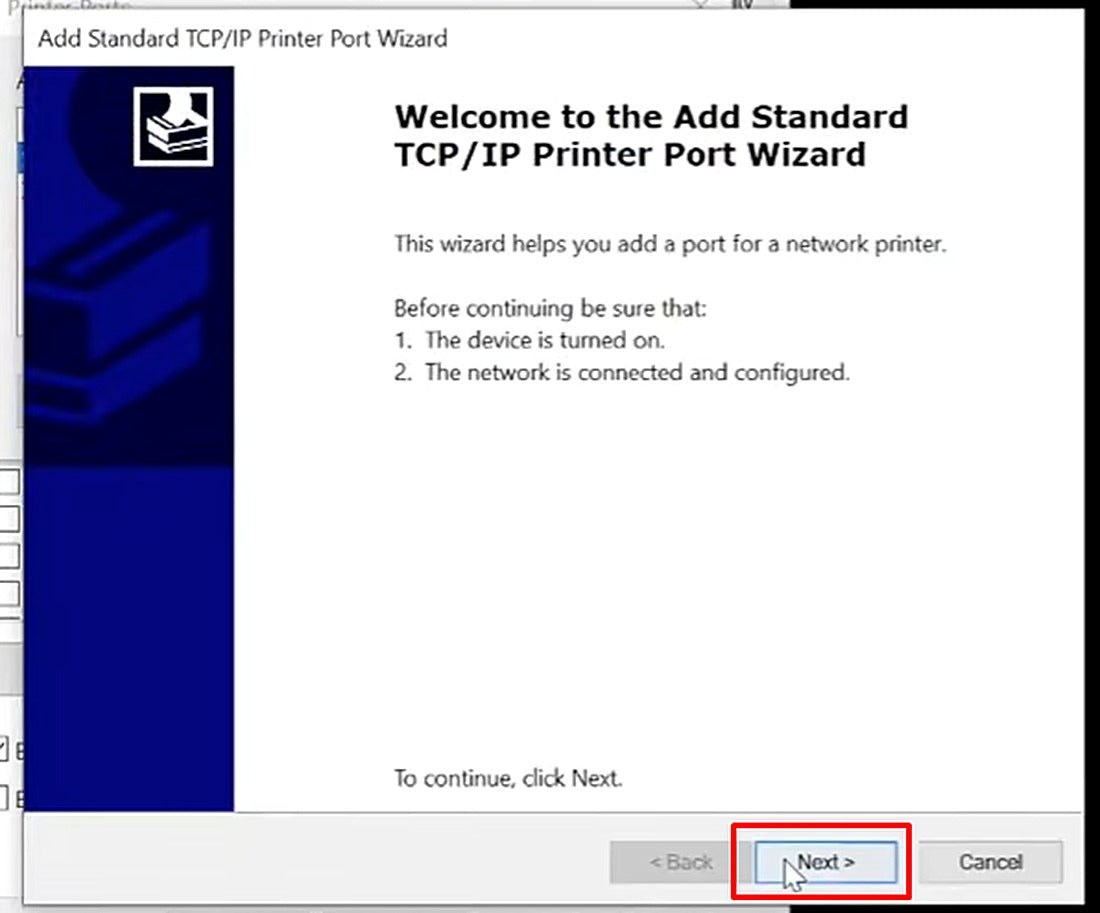

On the wizard's welcome screen, confirm the printer is powered on and connected to the network, then click Next.

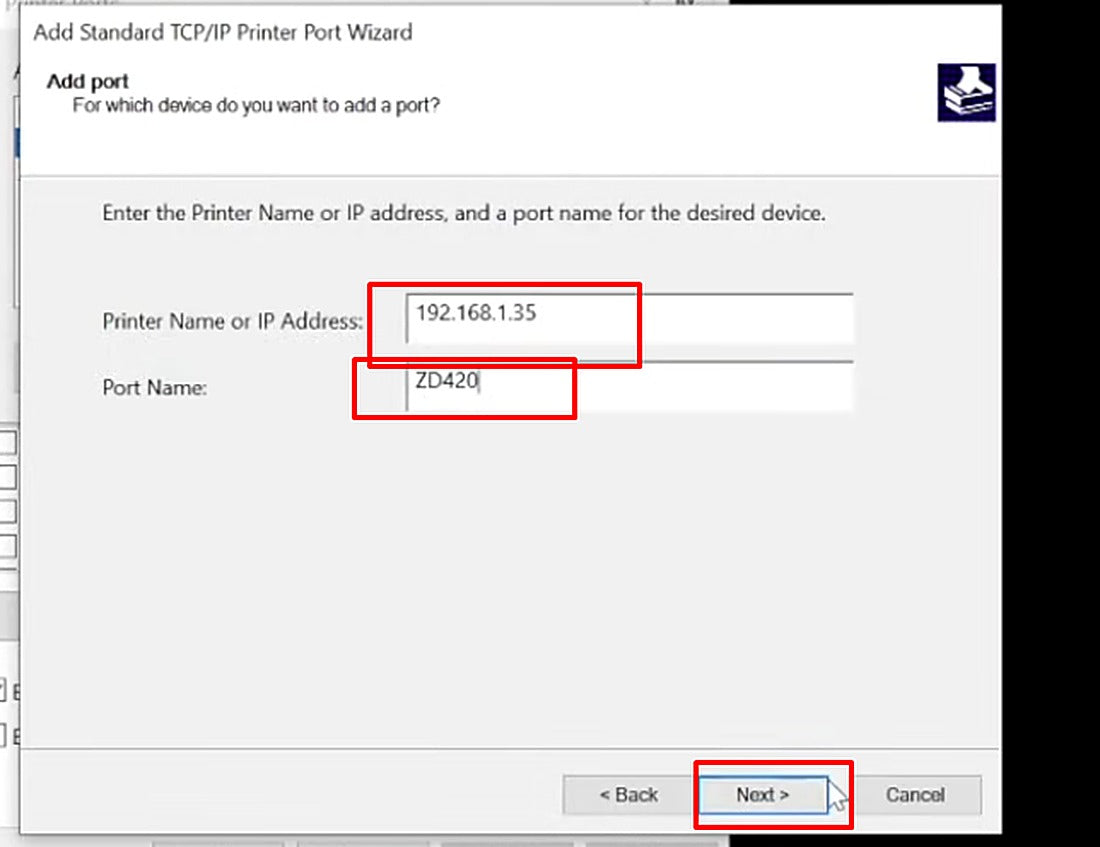

Enter the IP address you noted from the printed network configuration label in Step 21 (for example, 192.168.1.35), and give the port a name you'll recognize, such as ZD420. Click Next.

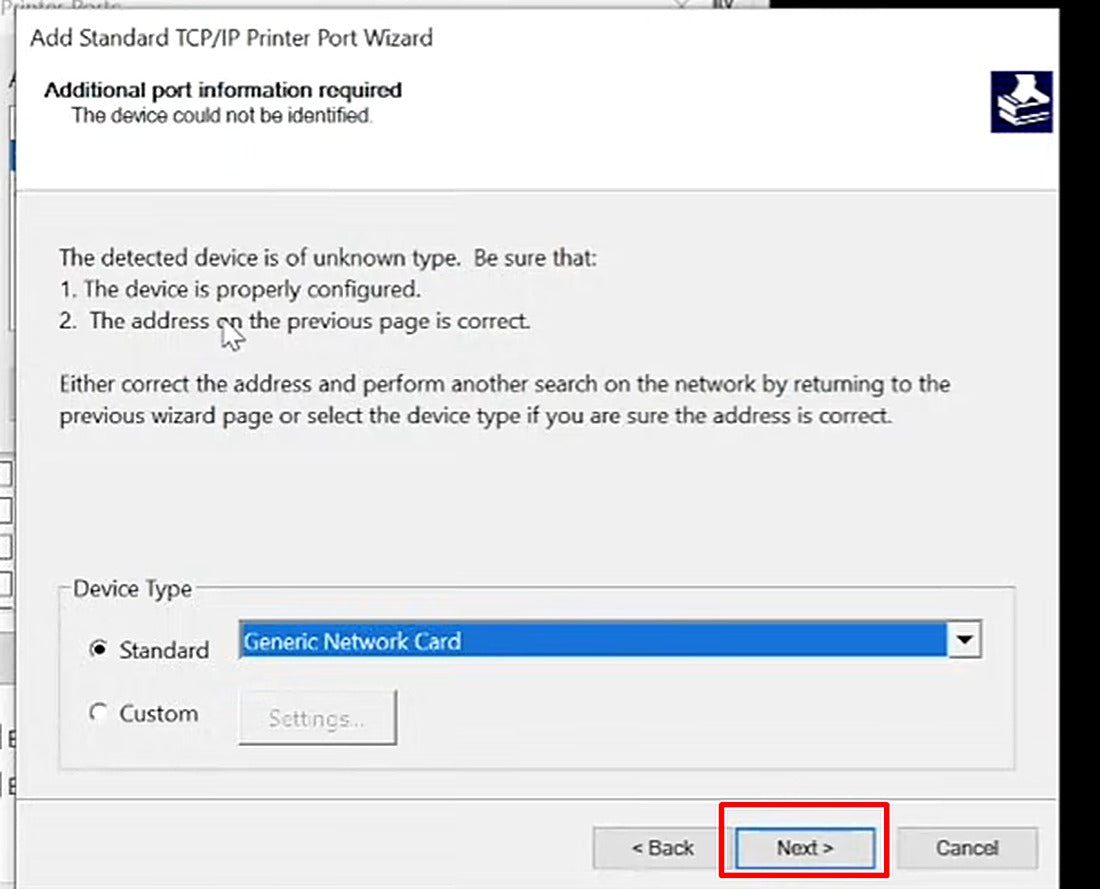

If prompted that the device type couldn't be identified automatically, select Standard and choose Generic Network Card from the dropdown, then click Next.

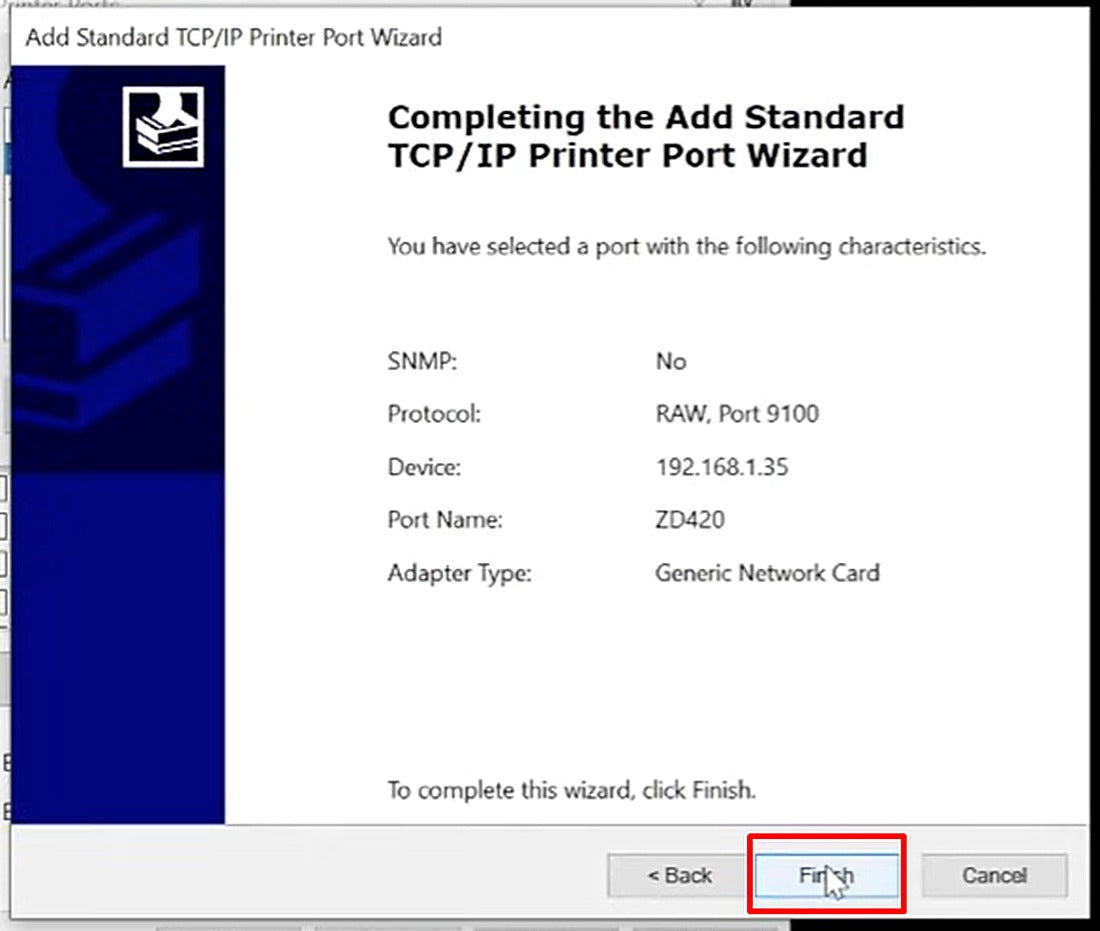

Review the summary of the new port's settings and click Finish to create it.

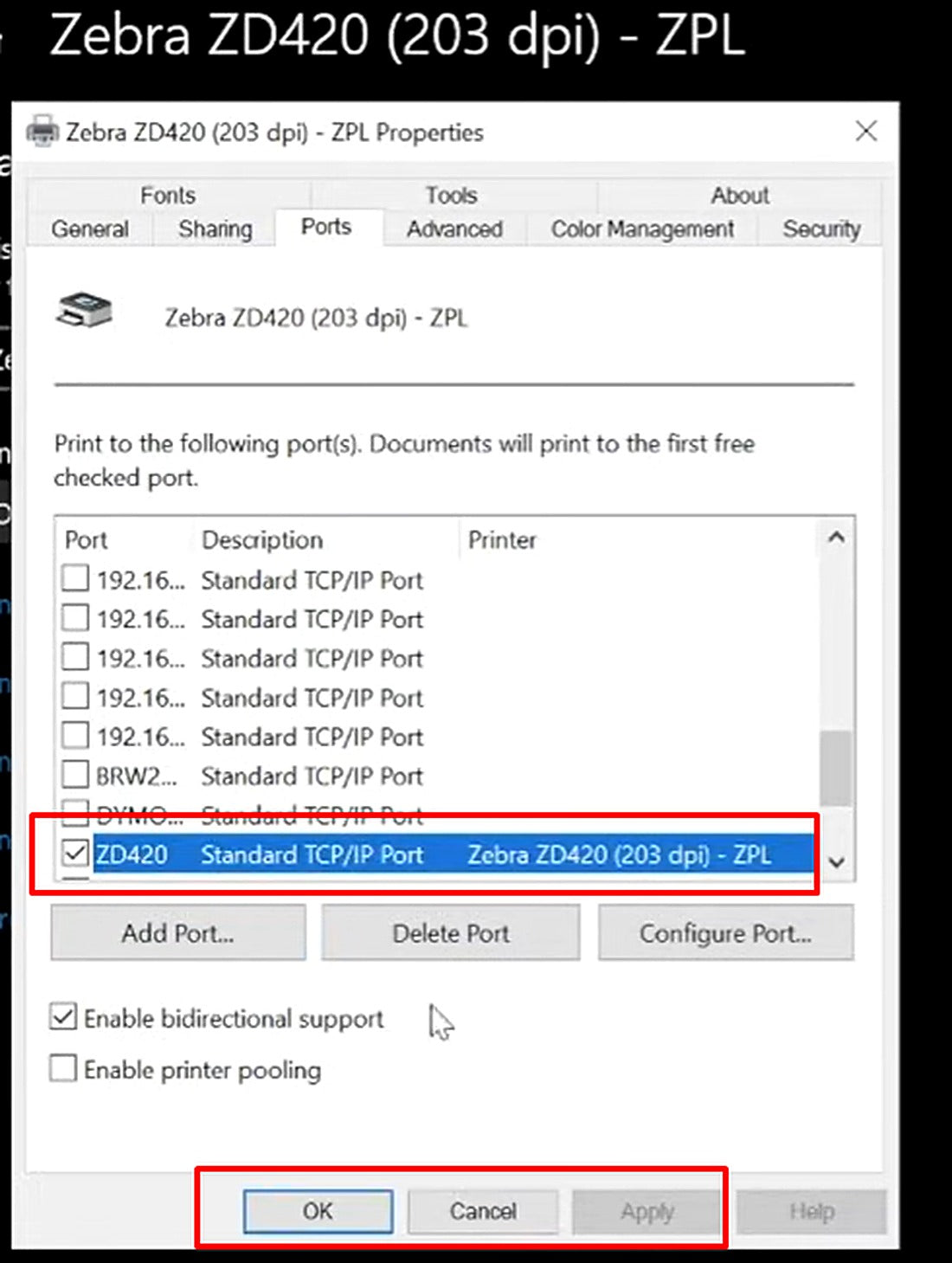

Back in the printer's Properties window, check the box next to the new port you just created (for example, ZD420) so the printer will send jobs to it instead of USB001. Click Apply, then OK.

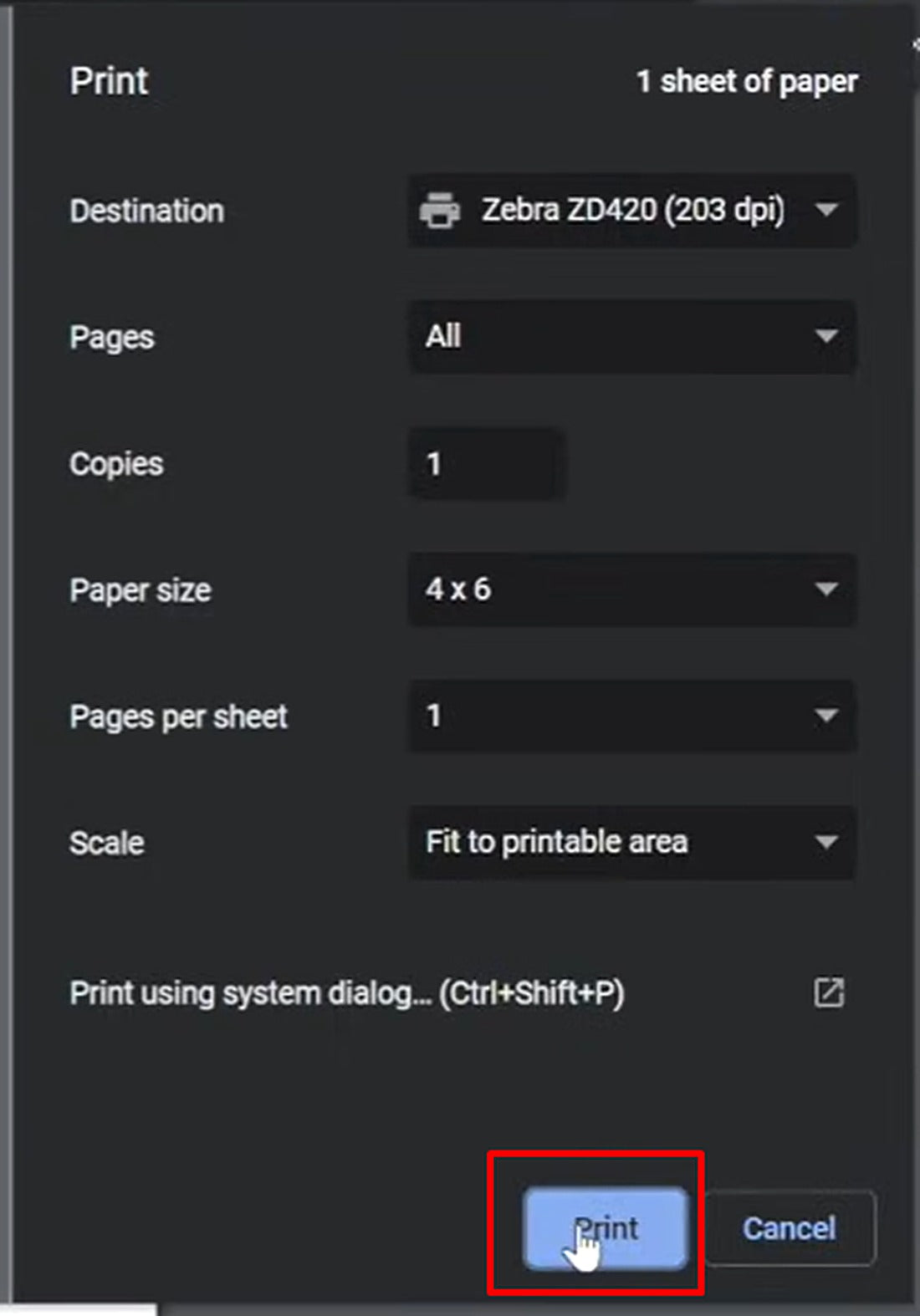

Disconnect the USB cable from the printer and try printing a label from any application. The print job should now travel over Wi-Fi to the printer's new network port instead of the USB cable.

Final Installation Checklist

Before handing the printer over to the user, verify the following:

• The printer driver installed successfully over USB and appears in Zebra Setup Utilities.
• The correct Wi-Fi network name (ESSID) and security mode were entered.
• Settings were applied and the network status light turned green.
• The printed network configuration label shows a valid IP address on your network.
• A new Standard TCP/IP port was created using that IP address, and it is selected in the printer's Ports tab.

Quick Troubleshooting Reference

• Network status light stays red. Double-check the ESSID spelling and security mode match your network exactly, and confirm the Wi-Fi password entered was correct. Reapply the settings (Steps 13–17).
• Windows can't find the printer at its new IP address. Print a fresh network configuration label (Step 20) to confirm the current IP address, and make sure the PC and printer are on the same network/subnet.
• Printer prints from Zebra Setup Utilities but not from other programs. Confirm the new network port is checked (and USB001 is unchecked) on the Ports tab (Step 32), and that the correct printer is set as default.
